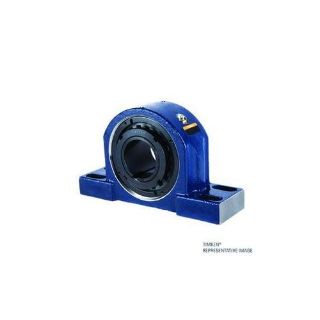

Timken TAPH26K408SEM QM Pillow Block 4.5 in Bore 15 in Bolt Center-to-Center Length

Product Description

The Timken TAPH26K408SEM is a durable pillow block designed for high-load applications. It features a bore diameter of four point five inches and a bolt center-to-center length of fifteen inches. This unit is suited for demanding environments with multiple steel housing options that provide comprehensive sealing solutions.

• Interchangeable with various products for easy installation.
• Constructed for high dynamic and static load capacities.
• Medium duty contact triple-lip seal made from nitrile rubber for superior performance.

Product Highlights

Designed to operate efficiently while maintaining high load capacities. The pillow block is suitable for a range of industrial applications, providing excellent sealing in moist and dirty conditions.

Product Information

Standard Information

• Brand: Timken
• Part Number: TAPH26K408SEM QM

Technical Specifications

• Bore Diameter: 4.5 in
• Bolt Center-to-Center Length: 15 in
• Base to Bore Centerline: 6 in
• Overall Length: 17.5 in
• Overall Width: 5.35 in
• Overall Height: 11.18 in
• Load Capacity: 170000 lb Dynamic / 212000 lb Static
• Maximum Speed: 700 rpm Grease / 700 rpm Oil
• Temperature Rating: -50 to 200 deg F
• Mounting Type: 4-Bolt
• Material: Steel
• Finish: Painted
• Locking Device: Tapered Adapter
• Expansion Type: Expansion
• Seal Type: M Seal
• Base Width: 4.25 in
