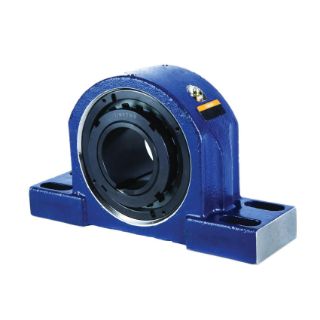

Timken TAPH15K207SM Pillow Block Spherical Roller Bearing Unit 2-7/16 in Bore

Product Description

The Timken TAPH15K207SM is a pillow block spherical roller bearing unit designed for durability and performance. This unit has a bore diameter of two and seven-sixteenth inches and features a four-bolt base mounting system.

• High load capacity of 49,900 pounds dynamic and 54,100 pounds static
• Non-expansion, fixed design for stable performance
• Triple lip seal for protection against contaminants

Product Highlights

This spherical roller bearing unit is ideal for applications in metal mills, power generation, and many industrial equipment setups.

Product Information

Standard Information

• Brand: Timken
• Type: Extra Heavy Duty SAF Style Solid Block

Technical Specifications

• MPN: TAPH15K207SM
• Bore Diameter: 2-7/16 inches
• Base Width: 3.13 inches
• Overall Length: 10.88 inches
• Overall Height: 6.38 inches
• Overall Width: 3.29 inches
• Bolt Center-to-Center Length: 7.94 to 9.69 inches
• Base to Bore Centerline: 3-1/4 inches
• Maximum Speed: 1600 RPM
• Locking Device: Tapered Adapter
• Seal Type: Triple Lip M
• Expansion Type: Non-Expansion (Fixed)
• Material: Cast Steel
• Finish: Powder Coated
• Dynamic Load Capacity: 49,900 lbs
• Static Load Capacity: 54,100 lbs
