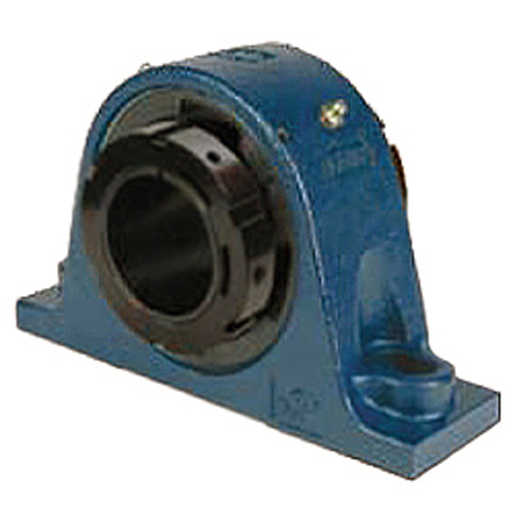

Timken TAPA26K407SO Pillow Block 4.4375 in Bore 14.25 to 15.75 in Bolt Center-to-Center

Product Description

The Timken TAPA26K407SO Pillow Block is designed to perform in harsh environments. This product features a bore diameter of four point four three seven five inches and is suitable for a bolt center-to-center length ranging from fourteen point two five to fifteen point seven five inches. Built for durability, this block has a painted steel finish and a cylindrical bore, ensuring a reliable operation.

• Excellent for high-load applications
• Non-expanding design with tapered adapter locking
• Wide temperature range from minus forty to two hundred sixty degrees Fahrenheit

Product Highlights

This pillow block ensures uptime by keeping contaminants out and providing robust sealing solutions.

Product Information

Standard Information

• Brand: Timken
• Manufacturer: Timken

Technical Specifications

• Series: TAPA
• Bore Diameter: 4.4375 inches
• Bolt Center-to-Center Length: 14.25 to 15.75 inches
• Overall Length: 17.5 inches
• Overall Width: 5.35 inches
• Overall Height: 11.18 inches
• Base to Bore Centerline: 6 inches
• Load Capacity: 170000 lb Dynamic / 212000 lb Static
• Maximum Speed: 400 rpm Grease / 400 rpm Oil
• Temperature Rating: -40 to 260 degrees Fahrenheit
• Mounting Type: 2-Bolt
