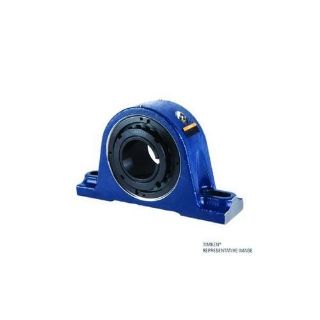

Timken TAPA20K307SB Pillow Block 3.4375 in Bore 10.88 to 12.88 in Bolt Center-to-Center

Product Description

The Timken TAPA20K307SB Pillow Block is designed for robust applications. This unit features a three point four three seven five inches bore diameter and a fixed mounting type. It is ideal for environments that require high durability and reliability.

• Uses a two-bolt mounting design for easy installation.
• Resistant to extreme temperatures between minus fifty and two hundred degrees Fahrenheit.
• Effective in high-load applications with a dynamic load capacity of ninety seven thousand seven hundred pounds.

Product Highlights

The Timken TAPA Pillow Block offers superior performance and features a tapered adapter locking device for secure mounting.

Product Information

Standard Information

• Brand: Timken
• Part Number: TAPA20K307SB QM

Technical Specifications

• Bore Diameter: 3.4375 inches
• Bolt Center-to-Center Length: 10.88 to 12.88 inches
• Base to Bore Centerline: 4.5 inches
• Overall Length: 14.7 inches
• Overall Width: 4.03 inches
• Overall Height: 8.63 inches
• Load Capacity: 97700 lb Dynamic / 113000 lb Static
• Seal Type: B Seal
• Temperature Rating: -50 to 200 degrees Fahrenheit
• Maximum Speed: 900 rpm Grease / 900 rpm Oil
• Expansion Type: Non-Expansion (Fixed)
• Mounting Type: 2-Bolt
• Locking Device: Tapered Adapter
• Material: Steel
• Finish: Painted
