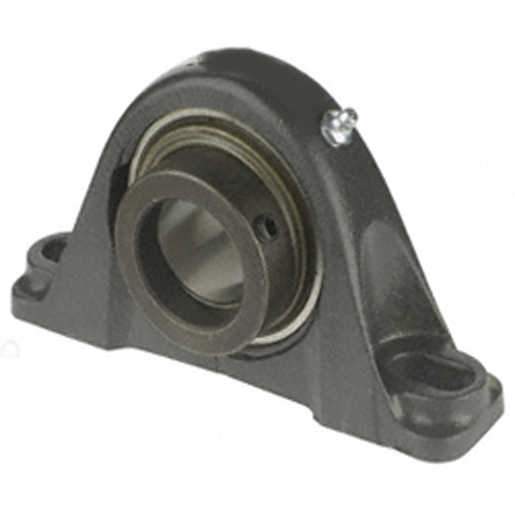

Timken TAK2 TKN Power 2 in Pillow Block Bearing

Product Description

The Timken TAK2 TKN is a standard duty pillow block ball bearing housed unit designed for various applications including agricultural and food processing. This unit features a two-inch diameter bore and comes with a bolt center-to-center length of eight point seven five one inches. It has a robust cast iron construction which ensures durability and a low base mounting for stability.

• Max load capacity of nine thousand seven hundred fifty pounds dynamic and six thousand five hundred seventy pounds static.
• Features a tri-ply contact seal for superior contamination protection.
• Incorporates an eccentric locking device for secure shaft mounting.

Product Highlights

This pillow block unit is suited for fans, blowers, and conveyors to keep machinery running smoothly and efficiently.

Product Information

Standard Information

• Brand: Timken
• Type: Standard Duty

Technical Specifications

• Series: TAK Industrial Series
• Bore Diameter: 2 in
• Mounting Type: Low Base
• Overall Length: 8-3/4 in
• Overall Width: 6.34 in
• Overall Height: 4-31/32 in
• Base to Bore Centerline: 2.437 in
• Bolt Center-to-Center Length: 8.751 in
• Locking Device: Eccentric
• Material: Cast Iron
• Load Capacity: 9750 lb Dynamic / 6570 lb Static
• Seal Type: Tri-Ply Contact
• Base Width: 2-3/8 in
