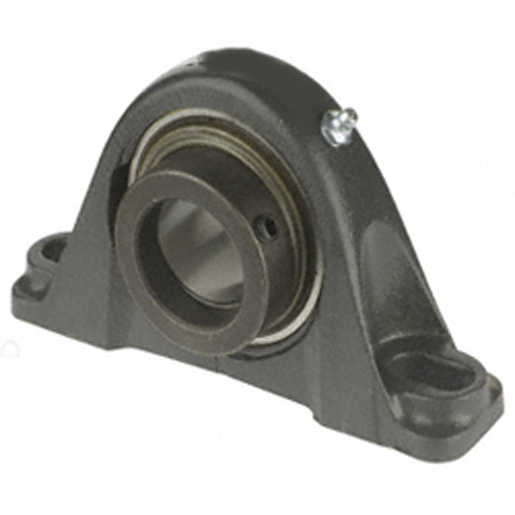

Timken TAK115/16 TAK Normal Duty Pillow Block Ball Bearing Unit

Product Description

Timken TAK115/16 is a normal duty pillow block ball bearing unit. It features a one and fifteen-sixteenths inch diameter bore. The bolt center-to-center length measures six point twenty-two inches. The base to bore centerline height is two point one eight seven inches. It is designed for various industrial applications, providing strong and reliable performance.

• Normal Duty design for versatile applications
• Two-bolt base for secure mounting
• Eccentric locking device for easy installation

Product Highlights

This unit is suitable for agriculture, food processing, fans, blowers, and conveyors. It is pre-lubricated and ready for immediate installation.

Product Information

Standard Information

• Brand: Timken
• Part Number: TAK1 15/16 TKN

Technical Specifications

• Bore Diameter: 1-15/16 in
• Overall Length: 7.874 in
• Overall Width: 2-15/32 in
• Overall Height: 4.437 in
• Load Capacity: 5770 lb Dynamic / 3440 lb Static
• Temperature Rating: 250 deg F
• Maximum Speed: 500 rpm
• Mounting Type: Two-Bolt Base
