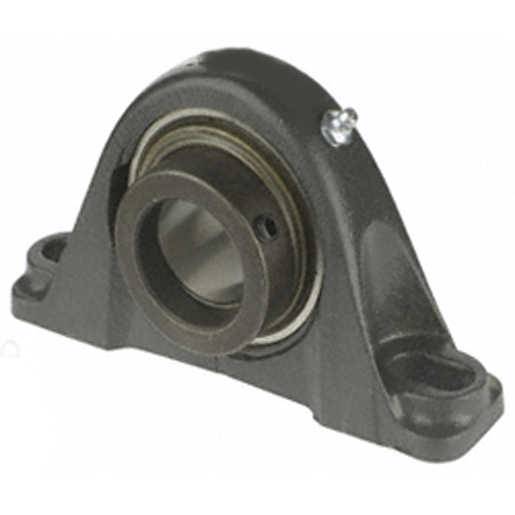

Timken TAK111/16 TAK1 11/16 TKN Standard Duty Pillow Block Ball Bearing

Product Description

The Timken TAK111/16 Pillow Block Ball Bearing is designed for efficient operation in various applications. This product integrates a bearing, housing, seal, and locking system, making it straightforward to install and maintain. The TAK Industrial Series is known for its durability and reliability across various uses.

• Fits a bore diameter of 1.68 inches
• Overall length of 7-17/32 inches
• Dynamic load capacity of 7350 lb

Product Highlights

This product is ideal for applications in agriculture, food processing, and conveying systems. The eccentric locking device provides a secure fit, while the tri-ply contact seal protects against contaminants. This enhances overall equipment performance and longevity.

Product Information

Standard Information

• Brand: Timken
• Series: TAK Industrial Series

Technical Specifications

• Bore Diameter: 1.68 inches
• Bolt Center-to-Center Length: 5.874 inches
• Base to Bore Centerline: 2.063 inches
• Overall Width: 5.87 inches
• Overall Height: 4-1/8 inches
• Overall Length: 7-17/32 inches
• Base Width: 2-1/16 inches
• Load Capacity: 7350 lb Dynamic / 4600 lb Static
• Mounting Type: Low Base
• Locking Device: Eccentric
• Seal Type: Tri-Ply Contact
• Precision Class: ABEC 1
