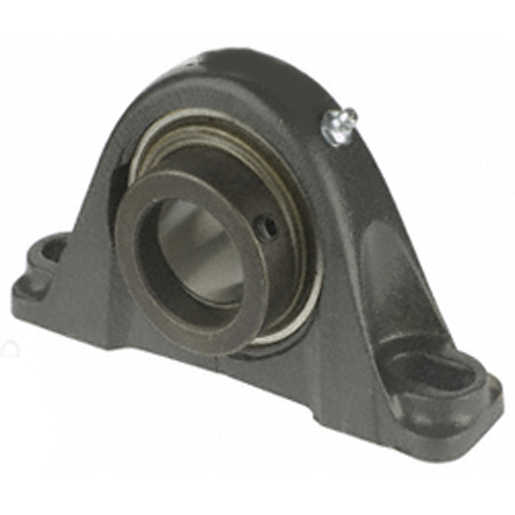

Timken TAK11/2 Pillow Block Ball Bearing Unit 1-1/2 in Diameter Bore

Product Description

Timken TAK11/2 is a normal duty pillow block ball bearing unit designed for a one and a half inch diameter bore. This unit ensures stable shaft support through its wide-inner-ring design. It is suitable for various industrial applications including agriculture, food processing, and conveyor systems.

• Two-bolt base mounting for easy installation.
• Pre-lubricated, ready for immediate use.
• Features eccentric locking device and tri-ply shroud seal.

Product Highlights

Timken's TAK11/2 offers versatility in mounting positions while providing reliable performance in demanding environments.

Product Information

Standard Information

• Brand: Timken
• Part Number: TAK1 1/2 TKN

Technical Specifications

• Bore Diameter: 1-1/2 inches
• Bolt Center-to-Center Length: 5.374 inches
• Base to Bore Centerline: 1.937 inches
• Overall Length: 7.063 inches
• Overall Height: 4 inches
• Overall Width: 2-7/32 inches
• Base Width: 2.031 inches
• Load Capacity: 7330 lb Dynamic / 4460 lb Static
• Maximum Speed: 500 rpm
• Temperature Rating: 250 degrees F
• Expansion Type: Non-Expansion (Fixed)
• Mounting Type: Two-Bolt Base
• Locking Device: Eccentric
• Material: Cast Iron
• Finish: Uncoated
• Seal Type: Tri-Ply Shroud
