Timken TAK1 3/4 TKN Pillow Block Ball Bearing Unit

Product Description

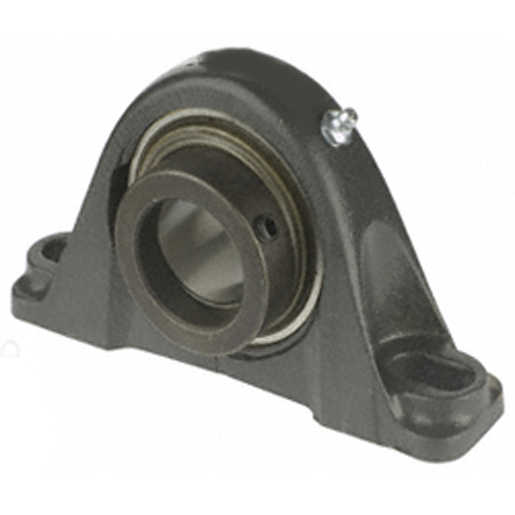

The Timken TAK1 3/4 TKN is a pillow block ball bearing unit designed for effective use in various industrial applications. This unit features a one and three-fourth inch diameter bore and offers robust support for shafts. Its two-bolt base allows for easy mounting, while the eccentric locking device ensures secure operation.

• Normal duty series with heavy-duty construction
• Tri-ply shroud seal for enhanced protection
• Maximum speed of 500 RPM

Product Highlights

This unit is pre-lubricated and ready for immediate use. It is designed to self-align, accommodating misalignments within its mounting structure.

Product Information

Standard Information

• Brand: Timken
• Type: Normal Duty

Technical Specifications

• Bore Diameter: 1-3/4 in
• Base Width: 2.063 in
• Overall Height: 4.126 in
• Overall Length: 7.531 in
• Overall Width: 2-7/32 in
• Dynamic Load Capacity: 7350 lb
• Static Load Capacity: 4600 lb
• Temperature Rating: 250 deg F
