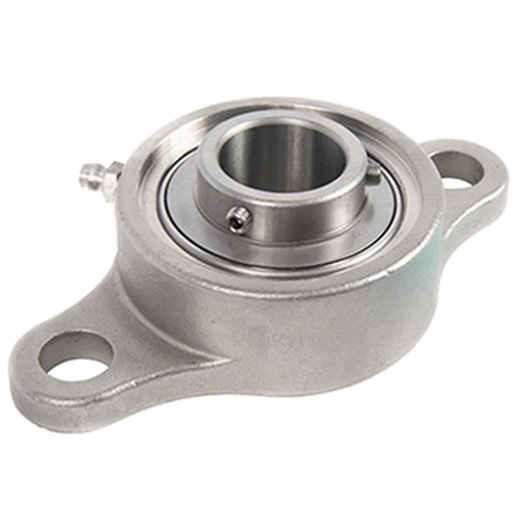

Timken SUCSFL206-19/F Flange-Mount Ball Bearing Unit - 1-3/16 in Bore - Standard Duty

Product Description

The Timken SUCSFL206-19/F is a flange-mount ball bearing unit designed for reliable performance. This bearing unit has a bore size of one and three-sixteenths inches and features a two-bolt flange mount. The set screw locking mechanism secures the shaft while preventing any movement during operation. Constructed with stainless steel, it offers durability and resistance to corrosion.

• Bore Diameter: 1-3/16 inches
• Standard duty type for versatile applications
• Self-aligning design enhances operational reliability

Product Highlights

This flange-mount ball bearing unit is built to improve food safety and reduce maintenance. It decreases unplanned downtime and increases overall productivity in various industries.

Product Information

Standard Information

• Brand: Timken
• MPN: SUCSFL206-19/F

Technical Specifications

• Weight: 2 lbs
• Overall Width: 3.1563 inches
• Overall Height: 1.5938 inches
• Overall Length: 5.8125 inches
• Flange Thickness: 0.394 inches
• Length Through Bore: 1.5 inches
• Bolt Circle Diameter: 0.6250 inches
• Number of Mounting Holes: 2
• Radial Static Load Capacity: 9.05 kN
• Radial Dynamic Load Capacity: 16.5 kN
• Type of Bearing: Ball
• Duty Type: Standard Duty
