Timken SUCSF207-23/F Flange-Mount Ball Bearing Unit - 1-7/16 In Bore - Standard Duty

Product Description

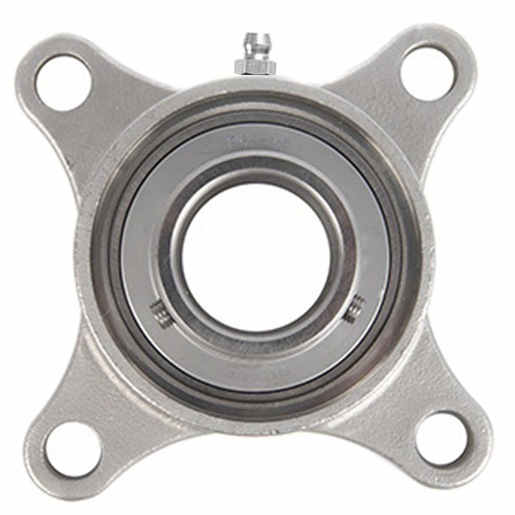

The Timken SUCSF207-23/F is a flange-mount ball bearing unit designed for reliable performance in various applications. This unit features a one and seven-sixteenths inch bore and comes with a four-bolt flange mount, ensuring easy installation and secure fit.

• Utilizes a set screw for locking
• Constructed from stainless steel for durability
• Incorporates a contact seal with a flinger seal to protect against contaminants

Product Highlights

This bearing unit aids in reducing maintenance requirements and enhances food safety for compliant operations.

Product Information

Standard Information

• Brand: Timken
• Minimum Order Quantity: 1

Technical Specifications

• Weight: 2.9 lbs
• Duty Type: Standard Duty
• Product Type: Flange-Mount Ball Bearing Units
• Bore Diameter: 1-7/16 in
• Overall Width: 4.5938 in
• Self Aligning: Yes
• Overall Height: 1.7480 in
• Overall Length: 4.5938 in
• Re-lubricatable: Yes
• Type of Bearing: Ball
• Flange Thickness: 0.433 in
• Length Through Bore: 1.689 in
• Bolt Circle Diameter: 0.5500 in
• Number of Mounting Holes: 4
• Radial Static Load Capacity: 12.3 kN
• Radial Dynamic Load Capacity: 21.8 kN
