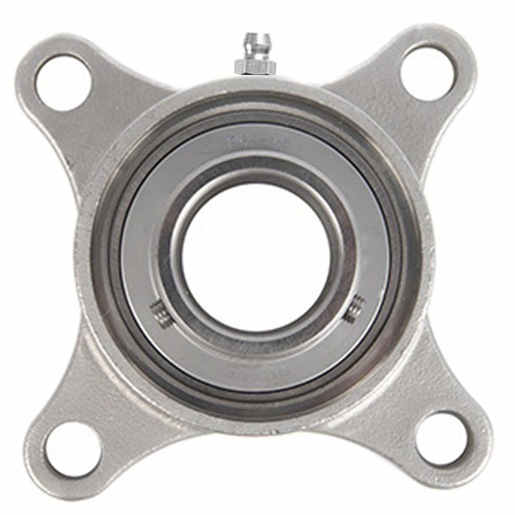

Timken SUCSF206/F Flange-Mount Ball Bearing Unit - 30 mm Bore - 4-Bolt Flange Mount

Product Description

The Timken SUCSF206/F is a flange-mount ball bearing unit with a bore diameter of thirty millimeters. It features a four-bolt flange mount and a set screw locking mechanism. The stainless steel housing material ensures durability and resistance to corrosion. This non-expansion bearing is designed for standard duty applications and includes a contact seal with a flinger seal for added protection.

• Wide inner ring design
• Self-aligning feature for easy installation
• Relubricatable for extended use

Product Highlights

This bearing unit is specifically designed to improve food safety, reduce maintenance needs, and decrease unplanned downtime while increasing productivity overall.

Product Information

Standard Information

• Manufacturer: Timken
• Order Minimum: 1 unit

Technical Specifications

• Duty Type: Standard Duty
• Bore Diameter: 30 mm
• Overall Width: 4.25 inches
• Overall Height: 1.5827 inches
• Overall Length: 4.25 inches
• Flange Thickness: 0.394 inches
• Length Through Bore: 1.5 inches
• Number Of Mounting Holes: 4
• Radial Dynamic Load Capacity: 16.5 kN
• Radial Static Load Capacity: 9.05 kN
• Self Aligning: Yes
• Relubricatable: Yes
