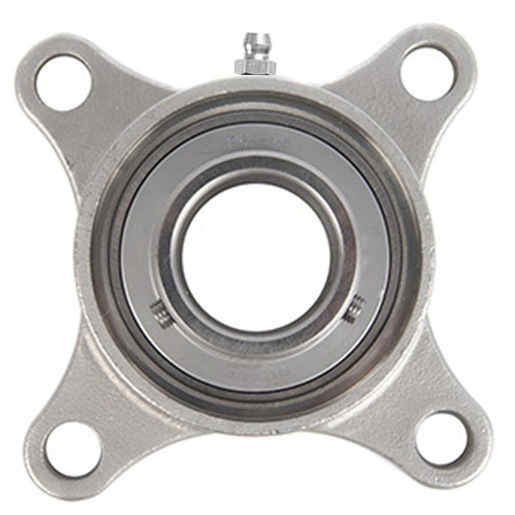

Timken SUCSF206-20/F Flange-Mount Ball Bearing Unit - 1-1/4 in Bore, 4-Bolt Flange Mount, Set Screw Locking, Stainless Steel Housing Material

Product Description

The Timken SUCSF206-20/F is a flange-mount ball bearing unit designed for robust performance. This unit features a bore size of one and one-quarter inches and utilizes a four-bolt flange mount for secure installation. The set screw locking mechanism aids in maintaining proper alignment, while the stainless steel housing ensures durability under various conditions. This bearing unit is a fixed, non-expansion type suitable for standard duty applications.

• Durable stainless steel housing
• Self-aligning design
• Relubricatable for extended service life

Product Highlights

The SUCSF206-20/F supports improved food safety and helps reduce maintenance needs.

Product Information

Standard Information

• Part Number: 08280069
• MFR Catalog No: 00825

Technical Specifications

• Weight: 2.2 lbs
• Bore Diameter: 1-1/4 in
• Overall Width: 4.2500 in
• Overall Height: 1.5827 in
• Overall Length: 4.2500 in
• Flange Thickness: 0.394 in
• Length Through Bore: 1.5 in
• Radial Dynamic Load Capacity: 16.5 kN
• Radial Static Load Capacity: 9.05 kN
• Number Of Mounting Holes: 4
• Self Aligning: Yes
• Relubricatable: Yes
• Type Of Bearing: Ball
