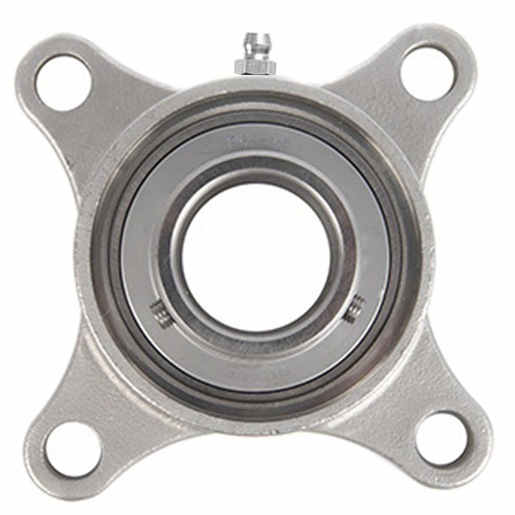

Timken SUCSF206-19/F Flange-Mount Ball Bearing Unit - 1-3/16 in Bore

Product Description

The Timken SUCSF206-19/F is a flange-mount ball bearing unit designed for a bore diameter of one and three-sixteenths inches. This unit features a four-bolt flange mount for secure installation and a set screw locking mechanism that ensures a tight fit. The stainless steel housing material offers durability, making it suitable for standard duty applications. The unit is a non-expansion bearing, allowing for fixed positioning without axial movement. It includes a contact seal with a flinger seal to protect against contaminants.

• 1-3/16 inch bore diameter
• Four-bolt flange mount
• Durable stainless steel construction

Product Highlights

This unit is ideal for applications that require reliability and improved food safety.

Product Information

Standard Information

• Brand: Timken
• MPN: SUCSF206-19/F

Technical Specifications

• Bore Diameter: 1-3/16 inches
• Overall Width: 4.25 inches
• Overall Height: 1.5827 inches
• Overall Length: 4.25 inches
• Flange Thickness: 0.394 inches
• Length Through Bore: 1.5 inches
• Number of Mounting Holes: 4
• Radial Static Load Capacity: 9.05 kN
• Radial Dynamic Load Capacity: 16.5 kN
• Self Aligning: Yes
• Relubricatable: Yes
• Type of Bearing: Ball
