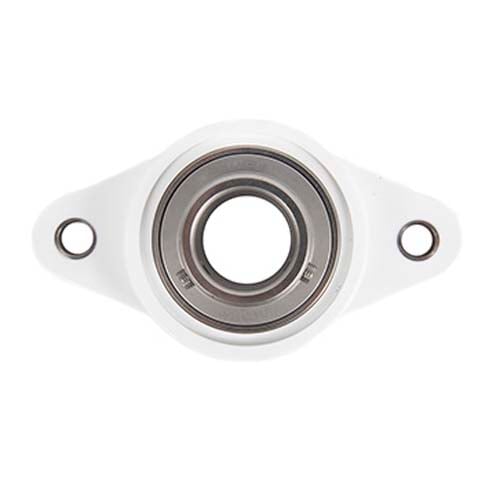

Timken SUCPLFL206-20/F Flange-Mount Ball Bearing Unit - 1-1/4 in Bore, 2-Bolt Flange Mount, Set Screw Locking

Product Description

The Timken SUCPLFL206-20/F is a flange-mount ball bearing unit designed for various applications. This model features a bore diameter of one and one-fourth inches and is fixed, meaning it does not allow for expansion. It is suitable for standard duty use and comes with a thermoplastic housing for durability.

• Reduces maintenance needs
• Supports increased productivity
• Improves food safety

Product Highlights

The SUCPLFL206-20/F allows for easy installation and reliable performance in industrial settings.

Product Information

Standard Information

• Brand: Timken
• MPN: SUCPLFL206-20/F

Technical Specifications

• Bore Diameter: 1-1/4 in
• Overall Width: 3.1563 in
• Overall Height: 1.5938 in
• Overall Length: 5.8125 in
• Flange Thickness: 0.563 in
• Length Through Bore: 1.5 in
• Number Of Mounting Holes: 2
• Radial Static Load Capacity: 9.05 kN
• Radial Dynamic Load Capacity: 16.5 kN
• Self Aligning: Yes
• Relubricatable: Yes
