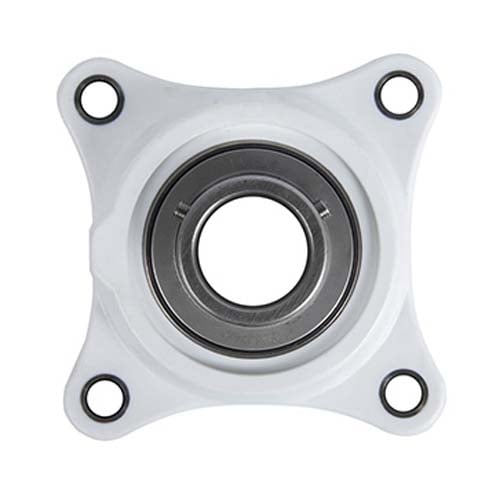

Timken SUCPLF206-19/F Flange-Mount Ball Bearing Unit - 1-3/16 in Bore, 4-Bolt Flange Mount, Set Screw Locking, Non-Expansion Bearing

Product Description

The Timken SUCPLF206-19/F is a flange-mount ball bearing unit designed for precise application. It features a one and three-sixteenth inch bore diameter and a four-bolt flange mount for secure installation. This product includes a set screw locking mechanism and a thermoplastic housing material for enhanced durability. It is a non-expansion bearing, which is suitable for standard duty applications.

• Designed for standard duty applications
• Features a thermoplastic housing
• Includes a contact seal with a flinger seal for protection

Product Highlights

This bearing unit provides reliable operation while improving food safety and reducing maintenance requirements.

Product Information

Standard Information

• Brand: Timken
• MPN: SUCPLF206-19/F

Technical Specifications

• Bore Diameter: 1-3/16 in
• Overall Width: 4.2188 in
• Self Aligning: Yes
• Overall Height: 1.6250 in
• Type of Bearing: Ball
• Flange Thickness: 0.571 in
• Number of Mounting Holes: 4
• Radial Dynamic Load Capacity: 16.5 kN
• Radial Static Load Capacity: 9.05 kN
• Length Through Bore: 1.5 in
• Bolt Circle Diameter: 0.4375 in
