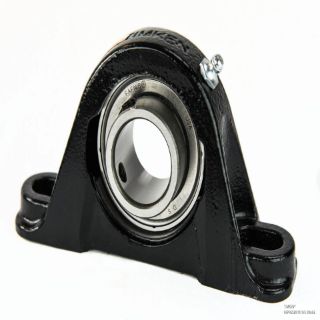

Timken SAS5/8 SAS 5/8 TKN Power Standard Pillow Block Bearing

Product Description

Timken SAS5/8 is a pillow block ball bearing unit designed for normal duty applications. It features a bore size of five-eighths inches and a robust construction for reliable performance. This bearing is ideal for mounting on straight shafts and offers effective support for various industrial uses.

• Normal duty standard unit with a set screw locking device.
• Temperature rated up to 250 degrees Fahrenheit.
• Factory pre-lubricated for immediate use and maintenance.

Product Highlights

This unit provides high load capacity and is suitable for agricultural and food processing applications. Its versatile design allows it to be oriented in multiple positions.

Product Information

Standard Information

• Brand: Timken
• Type: Normal Duty Standard

Technical Specifications

• MPN: SAS5/8
• Bore Diameter: 5/8 in
• Bolt Center-to-Center Length: 3.626 in
• Base to Bore Centerline: 1.187 in
• Overall Length: 4.874 in
• Overall Width: 15/16 in
• Overall Height: 2.22 in
• Load Capacity: 2170 lb Dynamic/1110 lb Static
• Maximum Speed: 7370 rpm
• Material: Cast Iron
• Seal Type: Narrow Shroud
• Mounting Type: Two-Bolt Base
• Expansion Type: Non-Expansion (Fixed)
• Locking Device: Set Screw
• Temperature Rating: 250 deg F
• Finish: Uncoated
