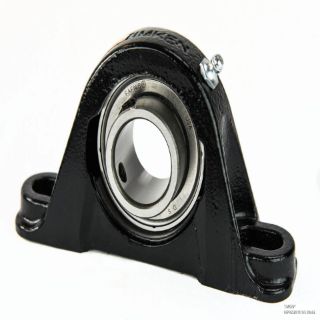

Timken SAS17/16 SAS1 7/16 Power Pillow Block Ball Bearing Unit

Product Description

The Timken SAS1 7/16 is a reliable pillow block ball bearing unit. Its design features a wide inner ring for stable mounting on straight shafts. The unit is suited for various applications, including agriculture and food processing. This normal duty standard bearing comes with a bore diameter of one and seven-sixteenths inches, ideal for industrial needs.

• Manufactured from cast iron
• Dynamic load capacity of five thousand seven hundred seventy pounds
• Maximum speed rating of three thousand nine hundred thirty RPM

Product Highlights

This bearing unit features a set screw locking device for secure mounting and a narrow shroud seal that protects against contamination.

Product Information

Standard Information

• Brand: Timken
• Model Number: SAS17/16

Technical Specifications

• Bore Diameter: 1-7/16 inches
• Overall Length: 6.563 inches
• Overall Height: 3.685 inches
• Bolt Center-to-Center Length: 5.126 inches
• Base to Bore Centerline: 1-7/8 inches
• Base Width: 1.78 inches
• Load Capacity: 5770 lb Dynamic / 3440 lb Static
• Maximum Speed: 3930 RPM
• Operating Temperature: 250 degrees F
• Mounting Type: Two-Bolt Base
• Expansion Type: Non-Expansion (Fixed)
• Locking Device: Set Screw
• Finish: Uncoated
• Seal Type: Narrow Shroud
• Series: SAS
