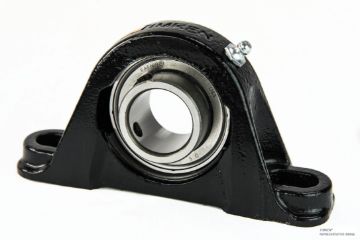

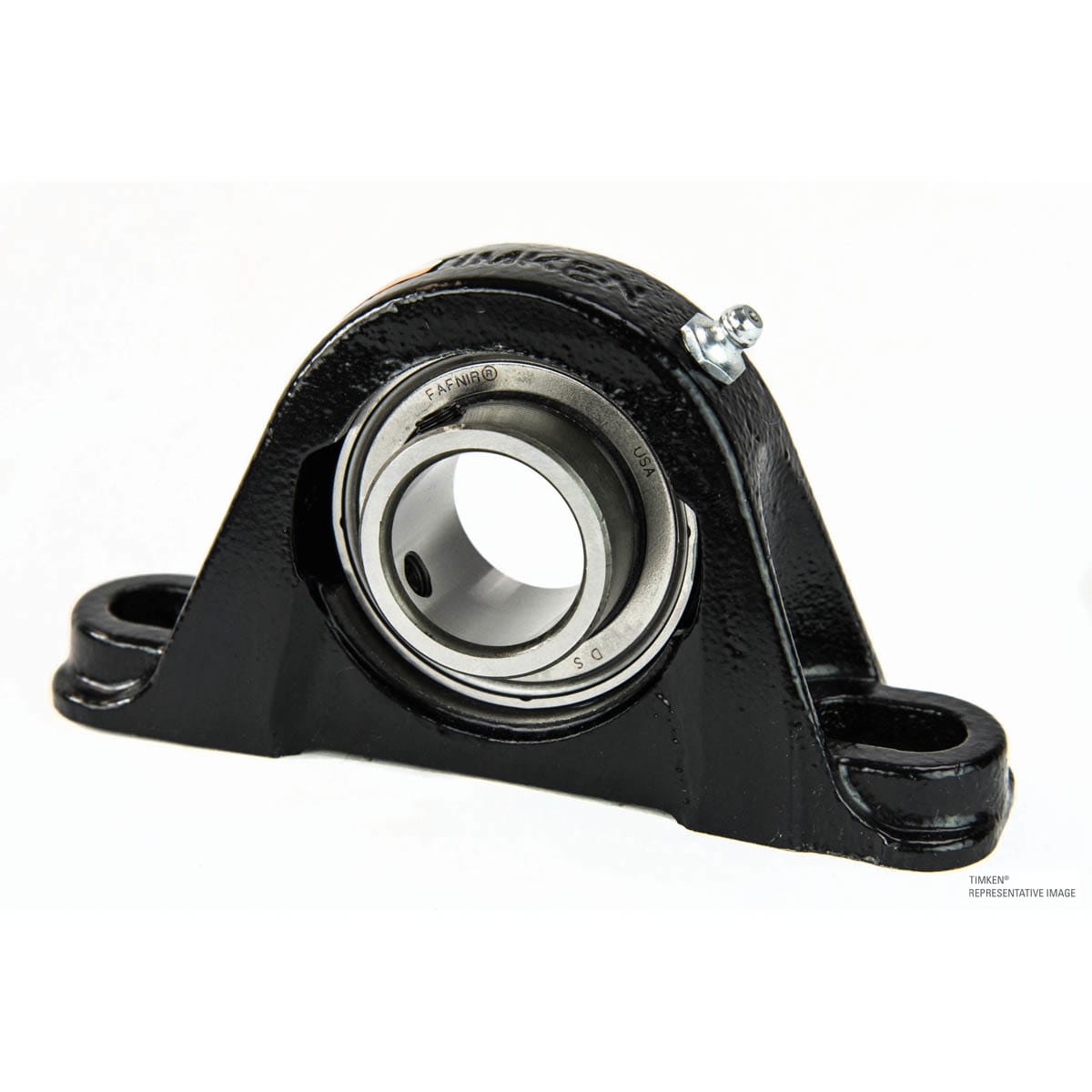

Timken SAS115/16 Pillow Block Ball Bearing Unit | Normal Duty Standard | 1-15/16 in Bore

Product Description

Timken SAS115/16 is a pillow block ball bearing unit designed for durability and ease of use. The normal duty standard model features a one-piece housing that provides structural support and ease of installation. This unit is ideal for applications in agriculture, food processing, fans, blowers, and conveyors.

• Two-bolt base for secure mounting.
• Set screw locking device for dependable security.
• Compatible with a variety of industrial applications.

Product Highlights

This Timken ball bearing unit combines advanced engineering for reliable performance in demanding conditions. Easy to mount and maintain, it serves a wide range of applications.

Product Information

Standard Information

• Brand: Timken
• MPN: SAS115/16

Technical Specifications

• Bore Diameter: 1-15/16 in
• Dynamic Load Capacity: 7890 lb
• Static Load Capacity: 5210 lb
• Maximum Speed: 3000 rpm
• Temperature Rating: 250 deg F
• Overall Length: 7.874 in
• Overall Width: 1-3/4 in
• Overall Height: 4-1/2 in
• Base Width: 2.189 in
• Bolt Center-to-Center Length: 6.22 in
• Expansion Type: Non-Expansion (Fixed)
