Timken SAS 3/4 TKN Pillow Block Ball Bearing Unit

Product Description

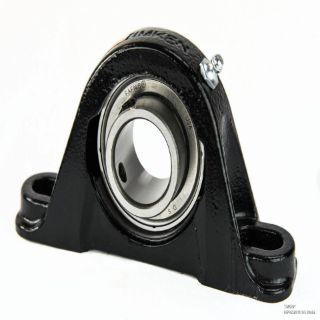

Timken SAS 3/4 TKN is a pillow block ball bearing unit designed for normal duty applications. This unit features a three-fourth inch diameter bore and is built for reliability under various industrial conditions. The Timken brand is recognized for its high-quality bearings, making this product suitable for industries such as agriculture and food processing.

• Features a two-bolt base for secure mounting.
• Designed with a set screw locking device for stability.
• Engineered for a maximum speed of six thousand two hundred seventy RPM.

Product Highlights

The SAS 3/4 TKN provides solid performance due to its cast iron construction and narrow shroud seal, which affords protection against contaminants.

Product Information

Standard Information

• Brand: Timken
• MPN: SAS 3/4

Technical Specifications

• Material: Cast Iron
• Overall Length: 5 inches
• Overall Width: 1.0625 inches
• Overall Height: 2.531 inches
• Bore Diameter: 3/4 inches
• Bolt Center-to-Center Length: 3.78 inches
• Base to Bore Centerline: 1.313 inches
• Locking Device: Set Screw
• Load Capacity: 2880 lb Dynamic / 1480 lb Static
• Maximum Speed: 6270 RPM
• Temperature Rating: 250 deg F
• Expansion Type: Non-Expansion (Fixed)
• Seal Type: Narrow Shroud
