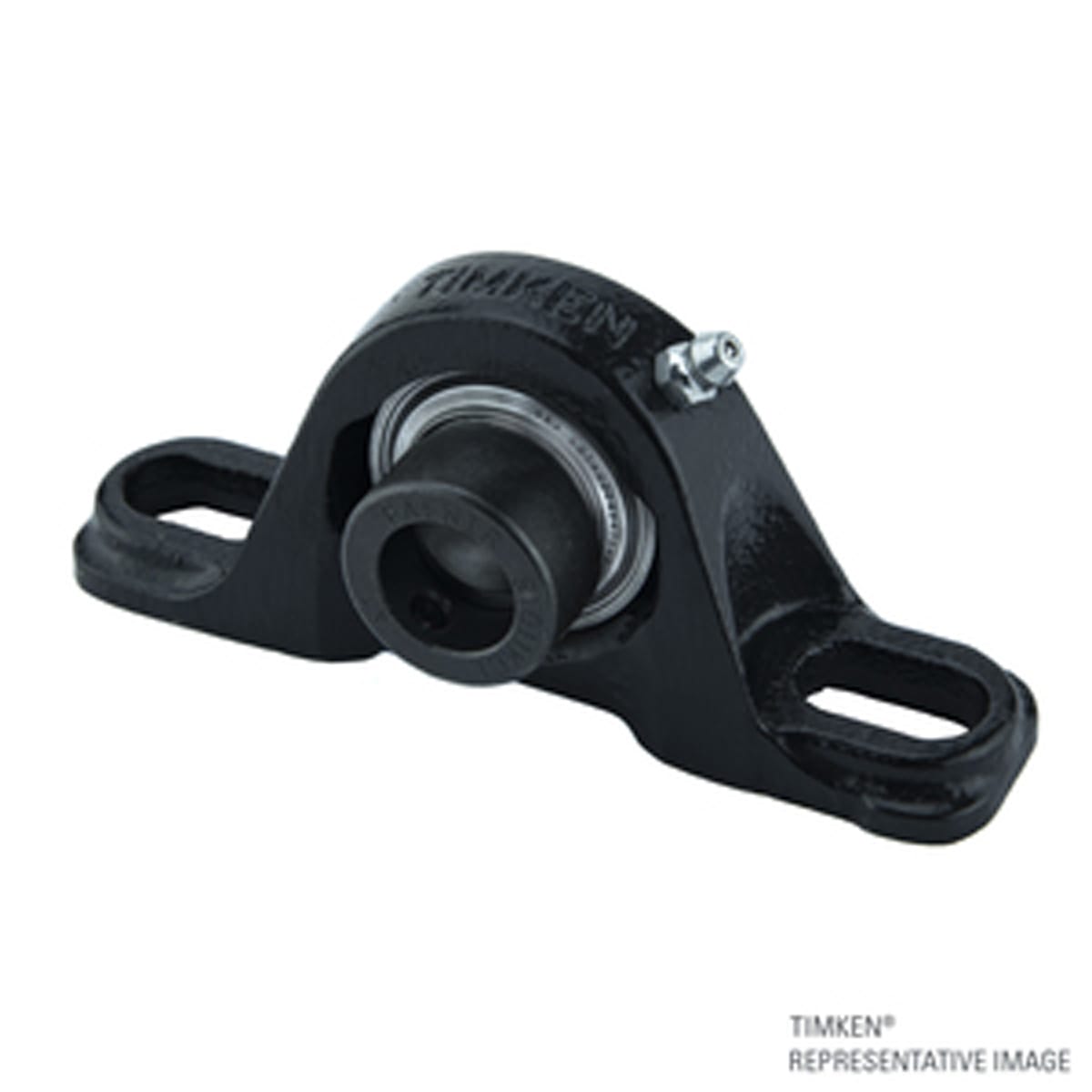

TIMKEN RSA23/16 Ball Pillow Block Housed Unit | 2.19 in Bore | 3.94 in OD

Product Description

The Timken Fafnir RSA23/16T Ball Pillow Block Housed Unit combines a bearing, housing, seal, and locking system into a single device for straightforward installation and operation. This design ensures effective performance and ease of maintenance.

• Equipped with G-KRRB wide inner ring ball bearings
• Pillow blocks are prelubricated for ready use
• Includes a grease fitting for relubrication

Product Highlights

Timken provides specialized product lines that effectively address various application challenges. The problem solver series minimizes downtime with advanced technology for improved efficiency in your operations.

Product Information

Standard Information

• Brand: TIMKEN
• MPN: RSA23/16

Technical Specifications

• Bore Diameter: 2.1878 Inch | 55.57012 mm
• Outside Diameter: 3.9367 Inch | 99.99218 mm
• Overall Width: 3.21875 Inch | 81.75625 mm
• Overall Height: 5.59448818897638 Inch | 142.1 mm
• Overall Length: 11.3740157480315 Inch | 288.9 mm
• Net Weight: 4.63 lb
• Dynamic Load Capacity: 10800 lb
• Static Load Capacity: 6570 lb
