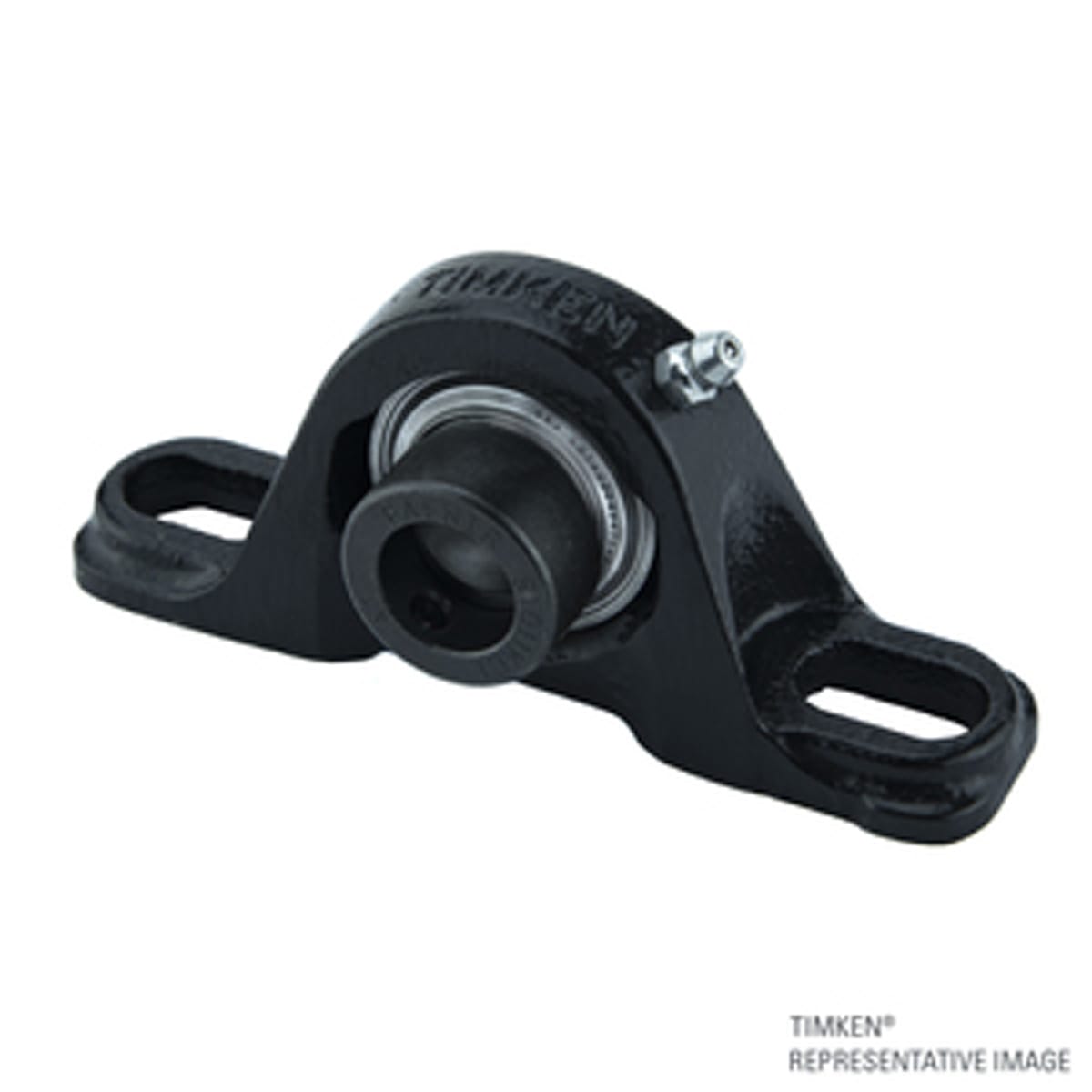

Timken RSA111/16 Ball Pillow Block Housed Unit | 42.87 mm Bore 86.43 mm OD

Product Description

The Timken RSA111/16 Ball Pillow Block Housed Unit features a bore diameter of 1.68775 inches and an outside diameter of 3.40275 inches. This unit combines the bearing, housing, seal, and locking system for straightforward installation and operation. It is part of the RSA series, which focuses on preventing downtime through advanced technology.

• Includes G-KRRB wide inner ring ball bearings.
• Pillow blocks are prelubricated and ready for use.
• A grease fitting allows for relubrication.

Product Highlights

The self-locking collar ensures secure mounting, and the nylon molded cage enhances the unit’s reliability in various applications.

Product Information

Standard Information

• Brand: Timken
• Part Number: RSA111/16T

Technical Specifications

• Bore Diameter: 1.68775 Inch | 42.86885 mm
• Outside Diameter: 3.40275 Inch | 86.42985 mm
• Overall Length: 8.25196850393701 Inch | 209.6 mm
• Overall Width: 2.5625 Inch | 65.0875 mm
• Overall Height: 4.5 Inch | 114.3 mm
• Net Weight: 35.064 lb
• Dynamic Load Capacity: 8160 lb
• Static Load Capacity: 4600 lb
