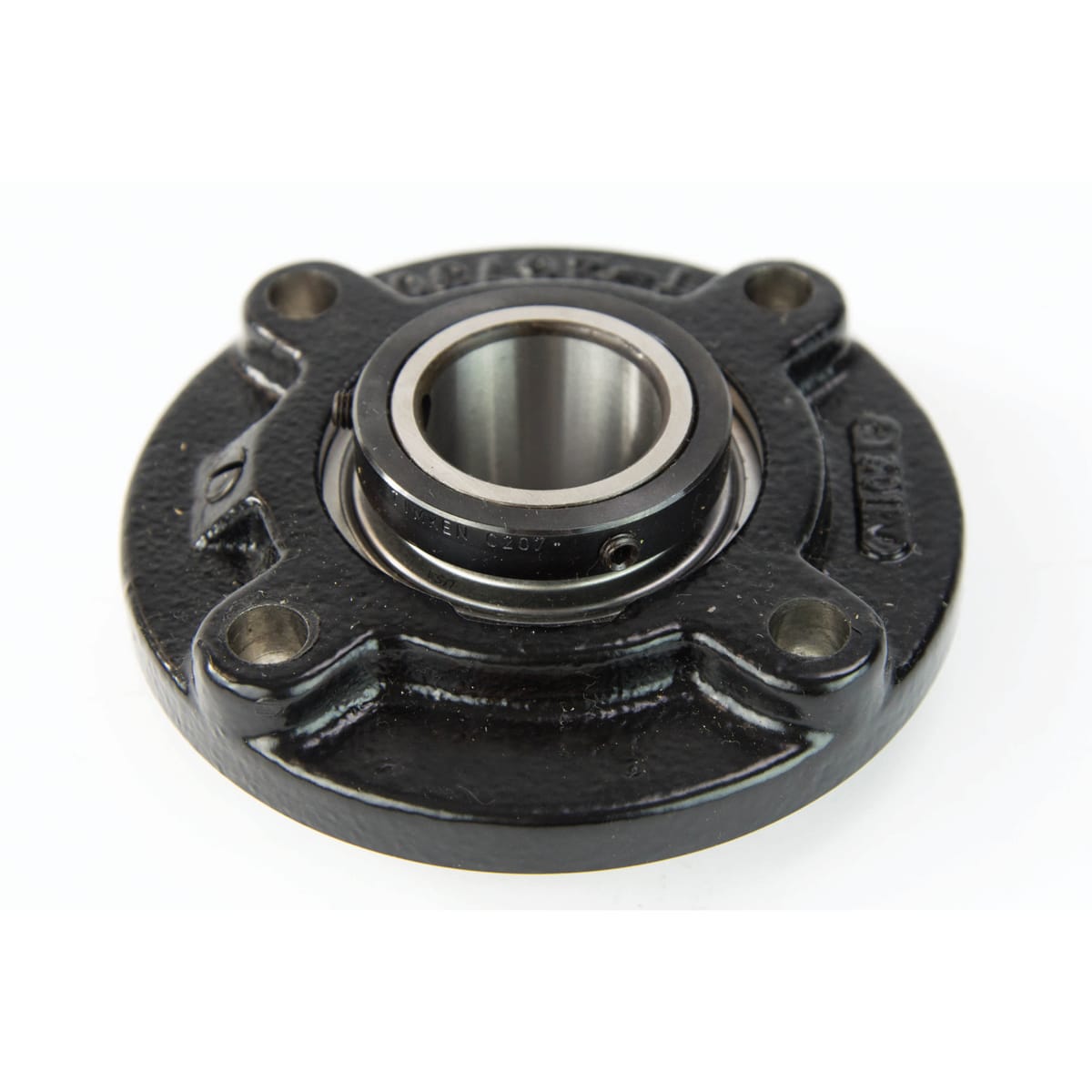

Timken RFC115/16 Fafnir RFC Ball Flange Unit | 49.22 mm | 1.94 in Bore | 90 mm | 3.54 in OD

Product Description

Timken Fafnir RFC115/16 is a ball flange unit designed for easy installation and reliable operation. This unit combines the bearing, housing, seal, and locking system into one assembly. It aims to enhance performance across various applications.

• Includes a steel wide inner ring ball bearing insert.
• Constructed with durable materials suited for heavy loads.
• Factory prelubricated for efficient performance.

Product Highlights

This ball flange unit is optimal for applications like material handling, industrial conveyors, and construction equipment.

Product Information

Standard Information

• Brand: Timken
• MPN: RFC115/16

Technical Specifications

• Bore Diameter: 1.93775 Inch | 49.21885 mm
• Outside Diameter: 3.54330708661417 Inch | 90 mm
• Overall Width: 6.375 Inch | 161.925 mm
• Overall Height: 2.15625 Inch | 54.76875 mm
• Net Weight: 12.9 lb
• Dynamic Load Capacity: 8740 lb
• Static Load Capacity: 5210 lb
• Precision Class: ISO Normal/ABEC1
