Timken RCJ17/16 Fafnir Four Bolt Ball Flange Unit | 1.44 in Bore 2.83 in OD

Product Description

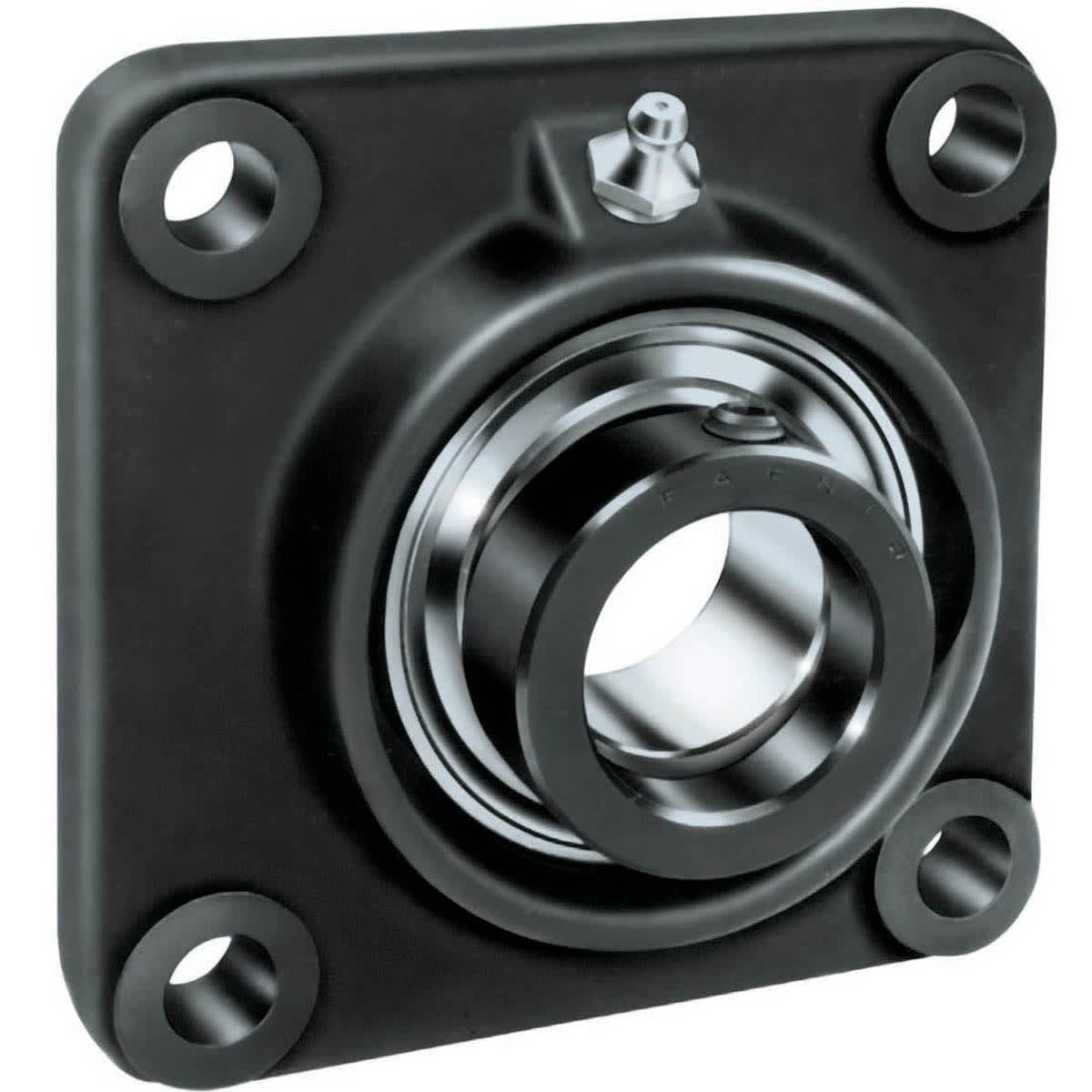

The Timken Fafnir RCJ17/16 is a four bolt ball flange unit designed to integrate bearing, housing, seal, and locking system into a single unit for straightforward installation. This unit is highly effective in enhancing operational performance and maintaining equipment efficiency.

• Fully assembled and ready for installation.
• Compensates for shaft misalignment with self-aligning B-types.
• Prelubricated with a grease fitting for easy relubrication.

Product Highlights

Timken Fafnir provides specialized units targeted at solving various application challenges and minimizing equipment downtime.

Product Information

Standard Information

• Brand: Timken
• MPN: RCJ17/16

Technical Specifications

• Type: Wide Inner Ring Ball Bearing Insert
• Material: Steel
• Bore Diameter: 1.43775 Inch | 36.51885 mm
• Outside Diameter: 2.83435 Inch | 71.99249 mm
• Overall Width: 4.63 Inch | 117.602 mm
• Overall Height: 2.106 Inch | 53.4924 mm
• Net Weight: 4 lb
• Static Load Capacity: 3440 lb
• Dynamic Load Capacity: 6400 lb
• Precision Class: ISO Normal/ABEC1
• Rolling Element: Steel Ball
• Retainer Material: Nylon
