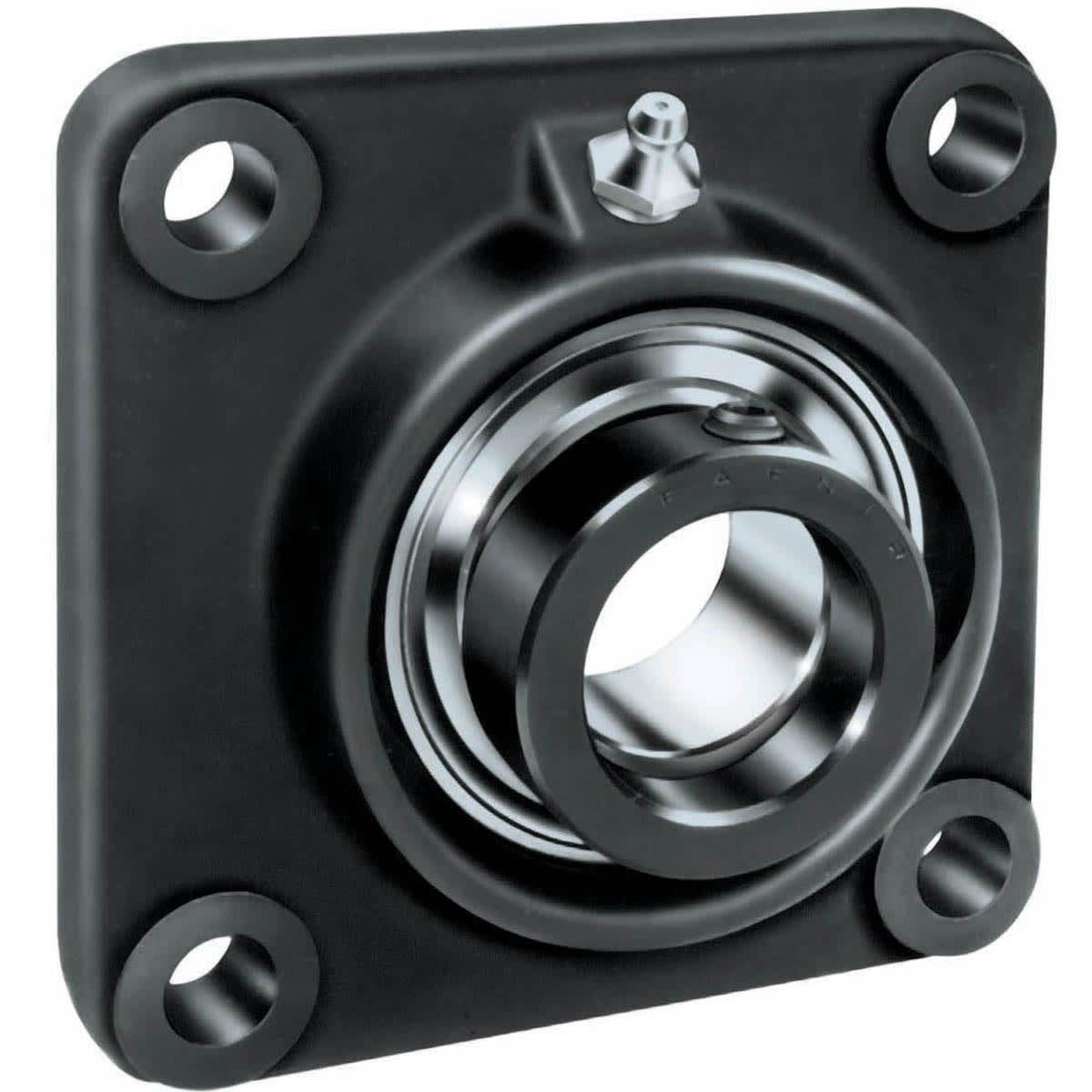

Timken RCJ111/16 Four Bolt Ball Flange Unit

Product Description

The Timken RCJ111/16 is a four bolt ball flange unit designed for easy installation. This unit features a combination of bearing, housing, seal, and locking system integrated into one assembly. Effective in various applications, it reduces downtime and improves equipment efficiency.

• Assembled and ready for mounting
• Self-aligning B-type wide-inner-ring ball bearings
• Factory prelubricated with a grease fitting for relubrication

Product Highlights

Timken's housed units utilize advanced technology for reliable performance.

Product Information

Standard Information

• Brand: Timken
• MPN: RCJ111/16

Technical Specifications

• Type: Wide Inner Ring Ball Bearing Insert
• Bore Diameter: 1.68775 Inch | 42.86885 mm
• Outside Diameter: 3.40275 Inch | 86.42985 mm
• Overall Width: 5.375 Inch | 136.525 mm
• Overall Height: 2.334 Inch | 59.2836 mm
• Overall Length: 5.375 Inch | 136.525 mm
• Net Weight: 1.72 lb
• Static Load Capacity: 4600 lb
• Dynamic Load Capacity: 8160 lb
• Rolling Element: Ball
• Cage Type: One Piece Molded Nylon
• Rolling Element Material: Steel
• Retainer Material: Nylon
• Precision Class: ISO Normal/ABEC1
• Radial Internal Clearance: P(C3)
