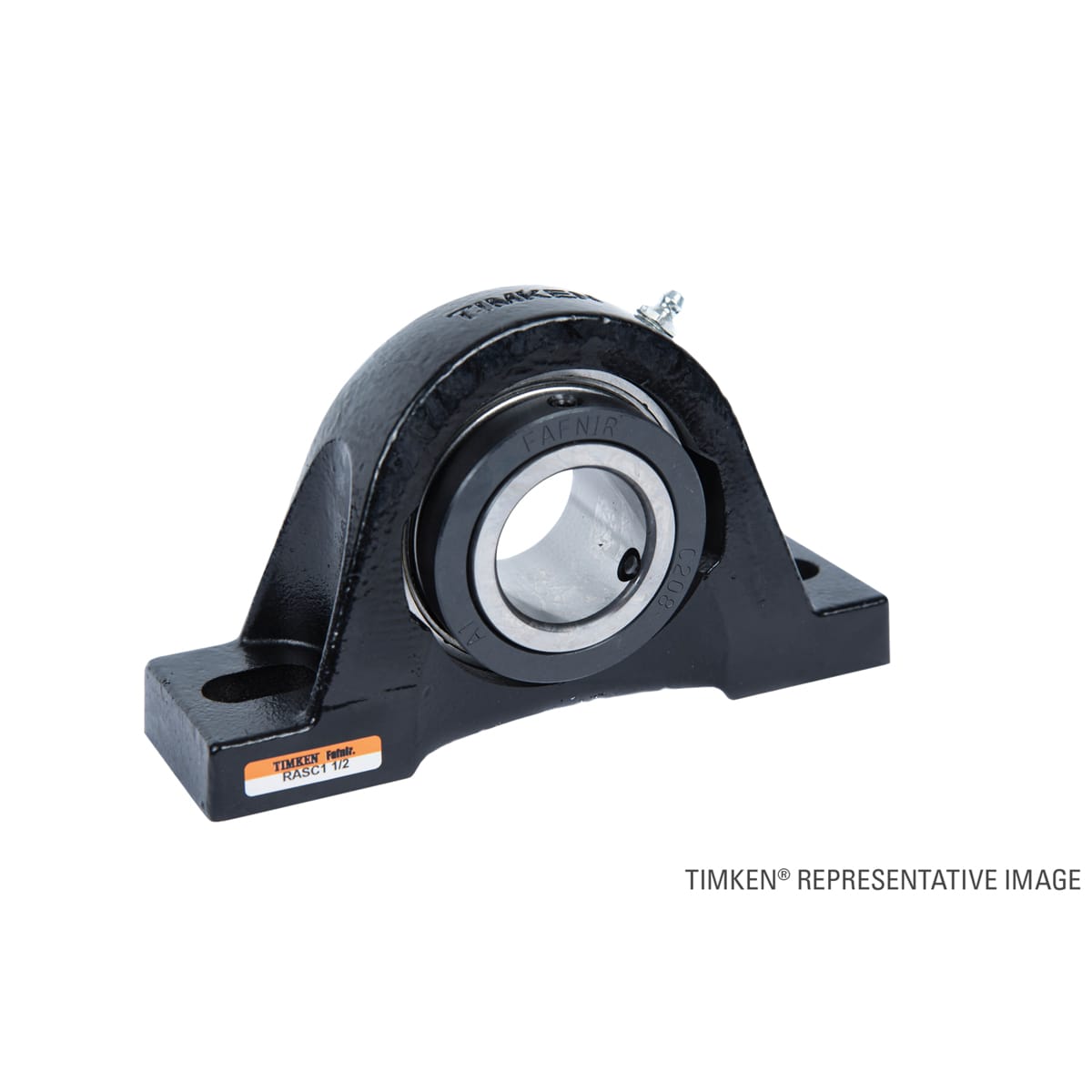

TIMKEN RASC17/16 Ball Bearing Housed Unit | Mounted Ball Bearing | 1.43 in Bore | 1.87 in OD

Product Description

The TIMKEN RASC17/16 is a cast iron pillow block designed to maximize performance. This unit combines the bearing, housing, seal, and locking system into one compact device, simplifying installation and operation. It is ideal for applications requiring reliable performance and minimal downtime.

• Prevents downtime with superior technology.
• High-quality steel construction ensures durability.
• Efficient locking system for various applications.

Product Highlights

This pillow block is designed for easy integration into various systems, supporting demanding applications with its robust features.

Product Information

Standard Information

• Brand: TIMKEN
• MPN: RASC17/16

Technical Specifications

• Type: Mounted Ball Bearing
• Material: Steel
• Bolt Size: 0.472 inches | 12 mm
• Bore Type: Round
• Cage Type: PRB Retainer
• Item Name: Fafnir Ball Housed Unit
• Net Weight: 3.69 lb
• Shaft Size: 1.43 inches | 36.322 mm
• Cage Material: Nylon
• Overall Width: 5 inches | 127 mm
• Overall Height: 3.69 inches | 93.7 mm
• Overall Length: 6.56 inches | 166.7 mm
• Precision Class: ISO Normal/ABEC1
• Rolling Element: Ball
• Outside Diameter: 1.87 inches | 72 mm
• Static Load Capacity: 3440 lb
• Dynamic Load Capacity: 5770 lb
• Rolling Element Material: Steel
• Radial Internal Clearance: P(C3)
