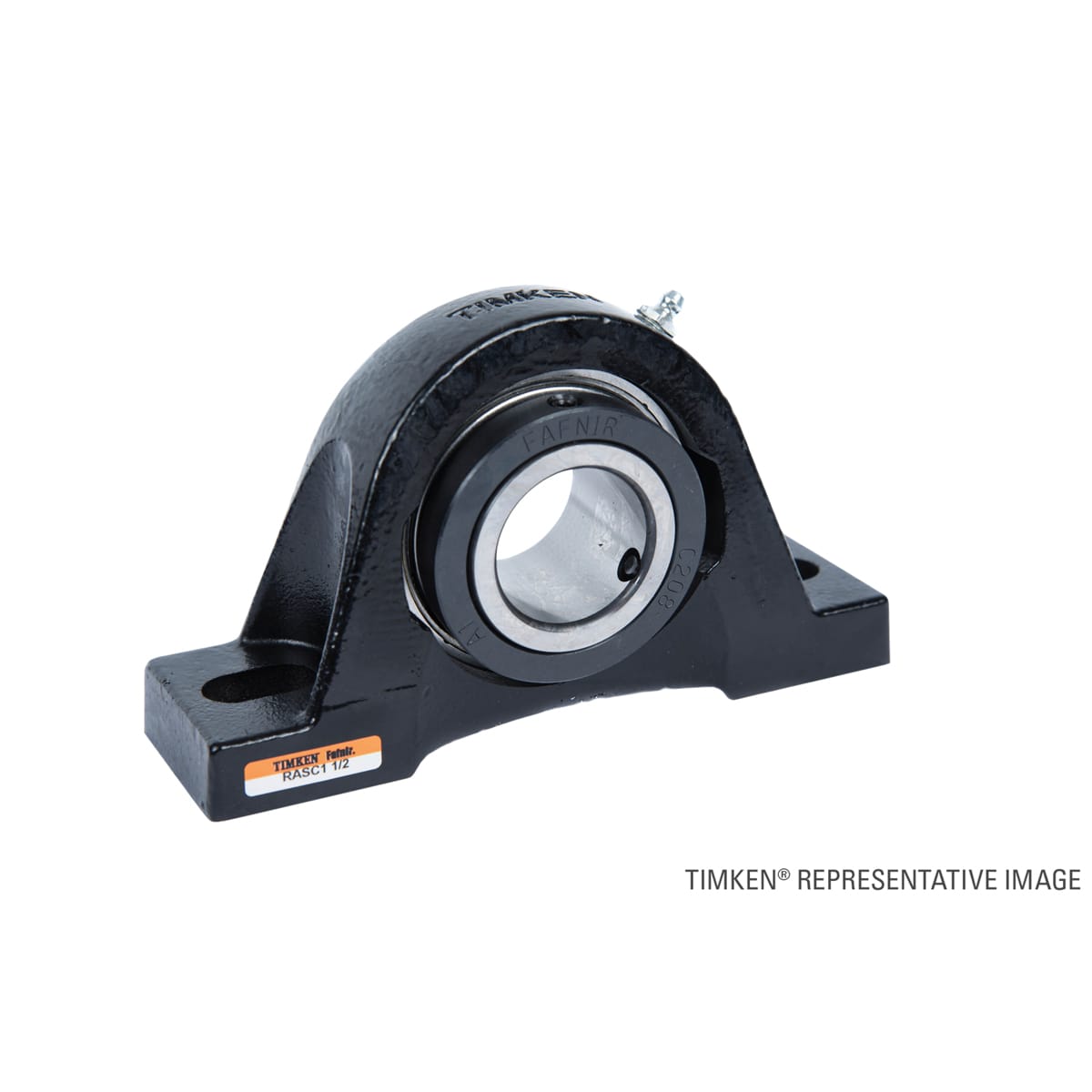

Timken RASC1 Cast Iron Pillow Block | 25.4 mm 1 in Bore | 52 mm 1.43 in OD | Concentric collar locking

Product Description

The Timken RASC1T cast iron pillow block features a one-piece design combining the bearing, housing, seal, and locking system. This integration simplifies installation and maintenance for engineers and technicians. Timken's Fafnir housed units are developed to address unique application challenges effectively, enhancing efficiency and reducing downtime.

• Durable design for reliable performance.
• Easy installation with a concentric collar locking system.
• Advanced sealing technology for contamination protection.

Product Highlights

The Timken RASC1T is engineered to enhance productivity in demanding environments, ensuring minimal interruptions to operations.

Product Information

Standard Information

• Brand: Timken
• Part Number: RASC1T

Technical Specifications

• Type: Mounted Ball Bearing
• Material: Steel
• Bolt Size: 0.3937 inches | 10 mm
• Bore Type: Round
• Cage Type: PRB Retainer
• Item Name: Fafnir Ball Housed Unit
• Net Weight: 1.77 lb
• Shaft Size: 1 inch | 25.4 mm
• Cage Material: Nylon
• Overall Width: 4.12 inches | 104.648 mm
• Overall Height: 2.81 inches | 71.4 mm
• Overall Length: 5.5 inches | 139.7 mm
• Precision Class: ISO Normal/ABEC1
• Rolling Element: Ball
• Outside Diameter: 1.43 inches | 52 mm
• Static Load Capacity: 1760 lb
• Dynamic Load Capacity: 3150 lb
• Rolling Element Material: Steel
• Radial Internal Clearance: P(C3)
