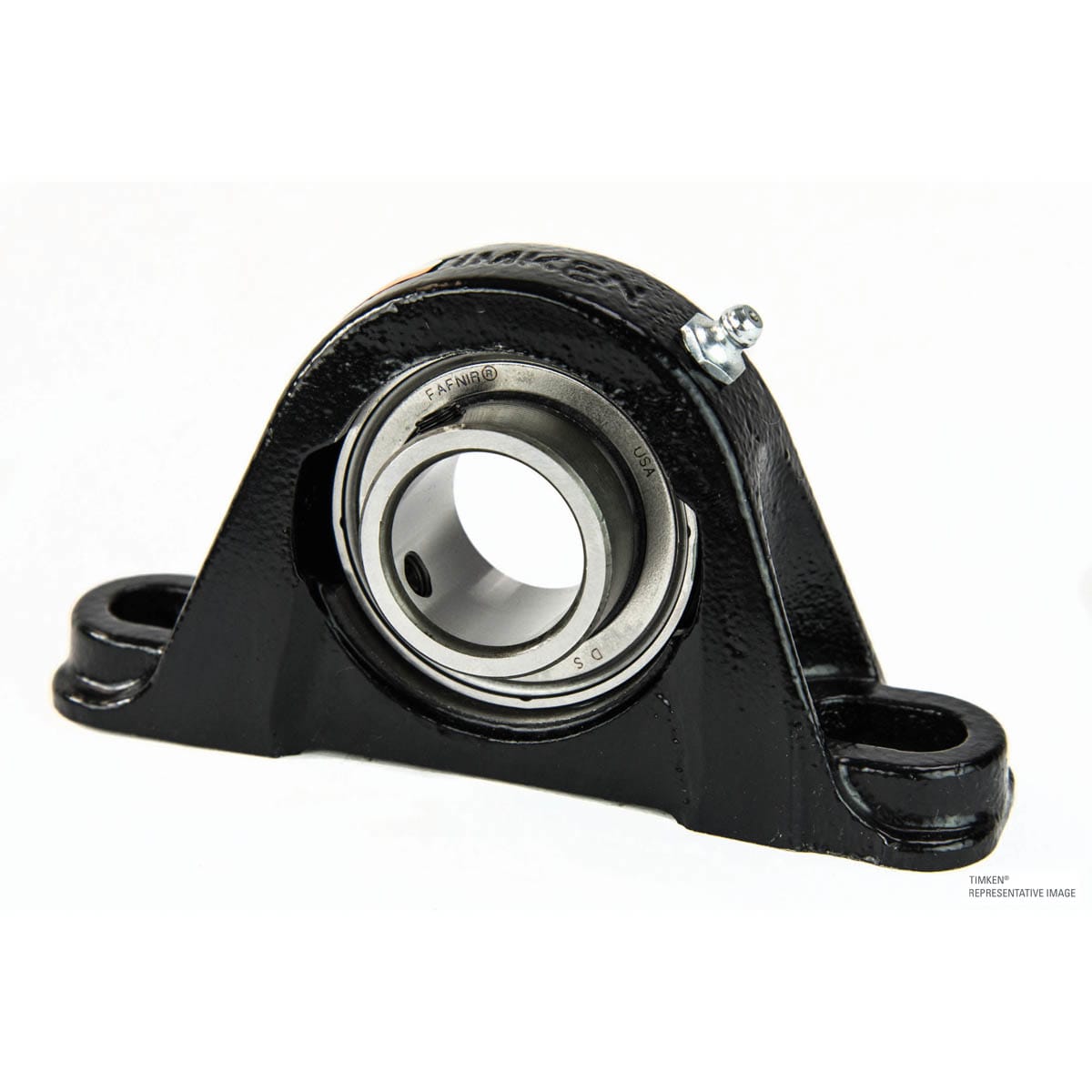

Timken RAS1 TKN Normal Duty Pillow Block Ball Bearing Unit

Product Description

Timken RAS1 TKN is a normal duty pillow block ball bearing unit designed for efficient performance. The unit features a one inch diameter bore and is built for mounting on straight shafts. It supports a dynamic load capacity of 5770 lb and static load capacity of 3440 lb, making it suitable for various applications in industries such as agriculture and food processing.

• Supports a diameter of one inch
• Overall length of five and one-half inches
• Two-bolt base mounting design for stability

Product Highlights

This pillow block is designed with a set screw locking device and is equipped with contact seals to enhance durability and performance.

Product Information

Standard Information

• Brand: Timken
• Type: Normal Duty

Technical Specifications

• MPN: RAS1
• Bore Diameter: 1 inch
• Load Capacity: 5770 lb Dynamic / 3440 lb Static
• Maximum Speed: 5440 rpm
• Material: Cast Iron
• Seal Type: Contact
• Base Width: 1-15/32 inches
• Overall Length: 5-1/2 inches
• Overall Height: 2-13/16 inches
• Temperature Rating: 250 degrees F
• Mounting Type: Two-Bolt Base
• Base to Bore Centerline: 1-7/16 inches
• Bolt Center-to-Center Length: 4-1/8 inches
