Timken RAKH27/16 Cast Iron Pillow Block | 2.43 in Bore | 3 in OD | RAKH27/16

Product Description

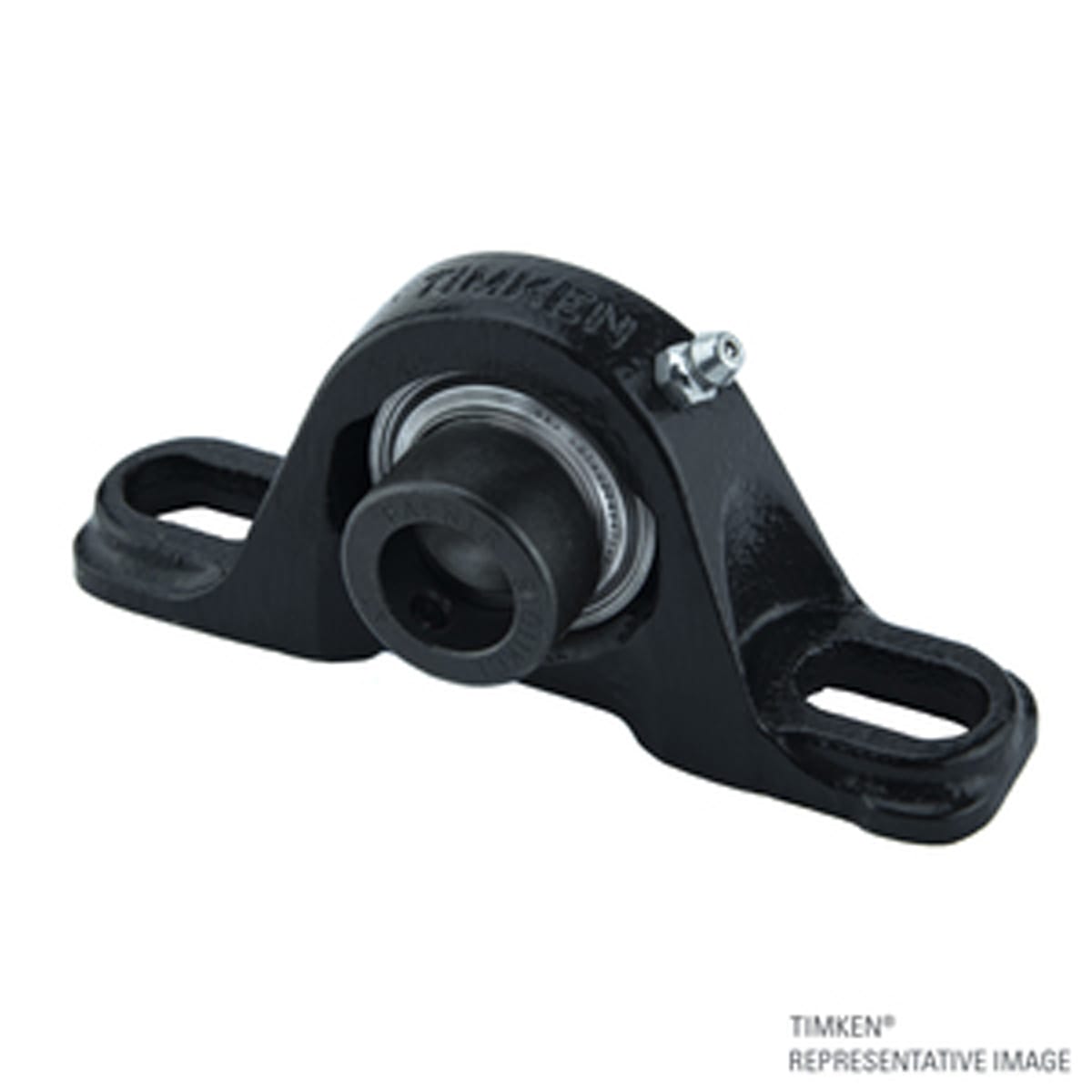

The Timken RAKH27/16T is a cast iron pillow block designed to maximize performance. It integrates the bearing, housing, seal, and locking system into a single unit for straightforward installation and operation. Timken's Fafnir housed units are tailored to address specific application concerns effectively.

• Includes specialized sealing and locking systems for enhanced application support.
• Features set screw solution with Shaft Guard Technology to prevent shaft damage.
• Robust design offers higher strength and stability against deformation.

Product Highlights

Ideal for demanding industrial applications, the Timken RAKH27/16T enhances efficiency and reduces downtime through advanced technology.

Product Information

Standard Information

• Brand: Timken
• Part Number: RAKH27/16T

Technical Specifications

• Type: Mounted Ball Bearing
• Material: Steel
• Bolt Size: 0.63 inches | 15.9 mm
• Bore Type: Round
• Cage Type: PRB Retainer
• Net Weight: 18.115 lb
• Shaft Size: 2.43 inches | 61.722 mm
• Cage Material: Nylon
• Overall Dimensions: 11.25 inches (length) x 8 inches (width) x 5.94 inches (height)
• Static Load Capacity: 8080 lb
• Dynamic Load Capacity: 11800 lb
• Rolling Element: Ball
• Outside Diameter: 3 inches | 110 mm
