Timken RAK211/16T Cast Iron Pillow Block | 2.68 in Bore | 3 in OD | RAK211/16

Product Description

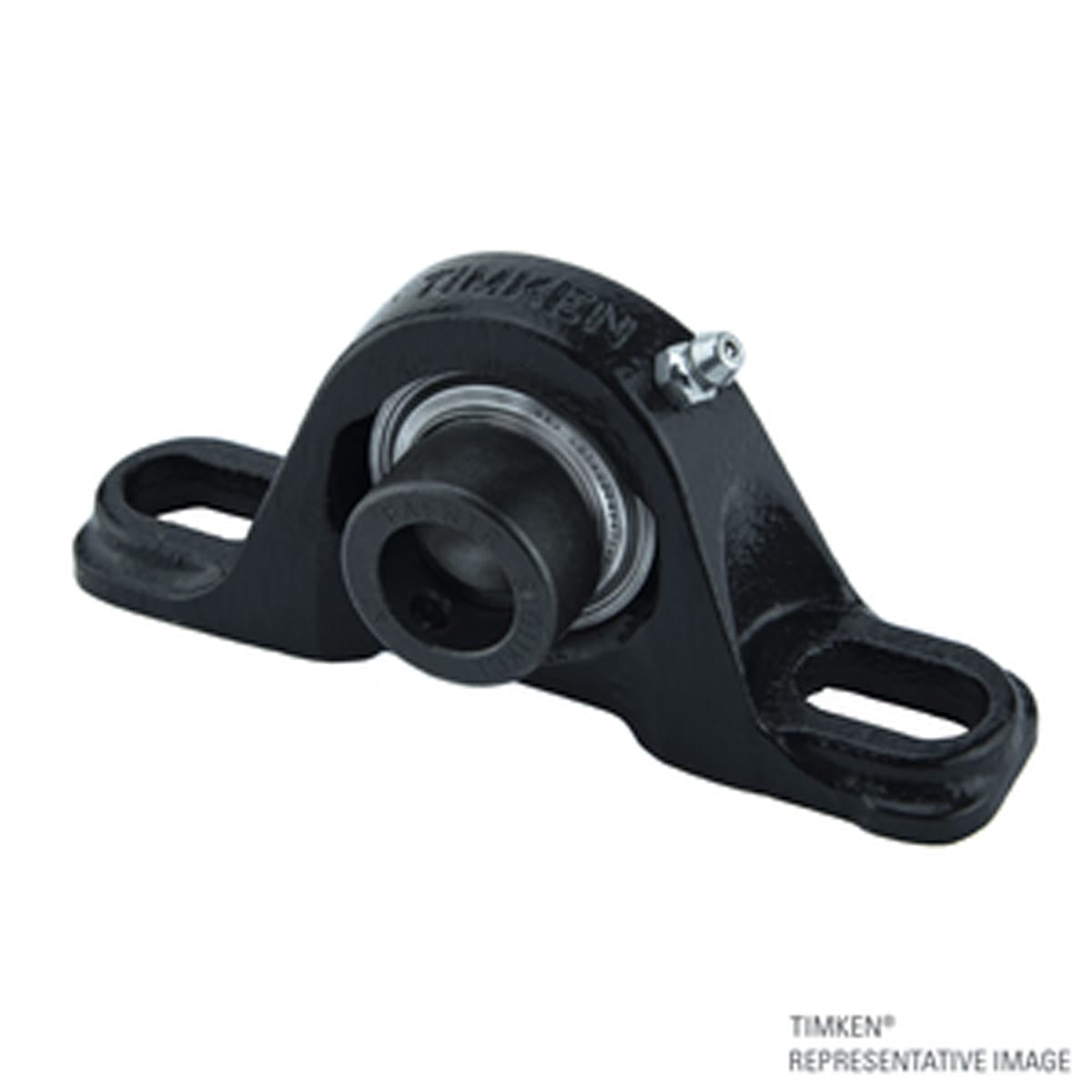

The Timken RAK211/16T Cast Iron Pillow Block is a mounted ball bearing unit. This unit combines the bearing, housing, seal, and locking system. It is crafted for easy installation and reliable operation. The design aims to enhance performance and reduce downtime.

• Features a round bore size of two point six eight inches.
• Includes various sealing solutions for diverse applications.
• Constructed from steel for durability and strength.

Product Highlights

This product ensures superior contamination protection and support for demanding applications.

Product Information

Standard Information

• Type: Mounted Ball Bearing
• Material: Steel

Technical Specifications

• Bolt Size: 0.787 inches | 20 mm
• Bore Type: Round
• Cage Type: PRB Retainer
• Item Name: Fafnir Ball Housed Unit
• Net Weight: 17.46 lb
• Shaft Size: 2.68 inches | 68.072 mm
• Cage Material: Nylon
• Overall Width: 8 inches | 203.2 mm
• Overall Height: 6.06 inches | 154 mm
• Overall Length: 10.5 inches | 266.7 mm
• Precision Class: ISO Normal/ABEC1
• Rolling Element: Ball
• Outside Diameter: 3 inches | 125 mm
• Static Load Capacity: 9890 lb
• Dynamic Load Capacity: 14000 lb
• Rolling Element Material: Steel
• Radial Internal Clearance: P(C3)
