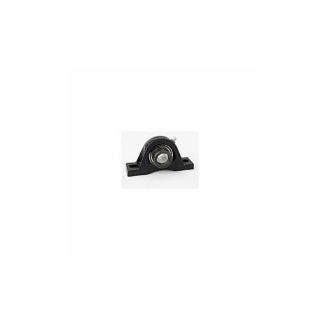

Timken RAK13/8 RAK1 3/8 TKN Normal Duty Pillow Block Ball Bearing Unit

Product Description

Timken RAK13/8 is a normal duty pillow block ball bearing unit designed for reliable shaft support in various applications. This unit features a one and three-eighth inch bore diameter and is made from cast iron for durability. It includes a two-bolt base that allows for stable mounting on equipment.

• Equipped with an eccentric locking device
• Designed for non-expansion mounting
• Pre-lubricated and ready for immediate installation

Product Highlights

This Timken unit supports dynamic loads of up to five thousand seven hundred seventy pounds and static loads of three thousand four hundred forty pounds. The temperature range for operation is up to two hundred fifty degrees Fahrenheit, providing versatility for multiple industrial applications.

Product Information

Standard Information

• Brand: Timken
• MPN: RAK13/8

Technical Specifications

• Bore Diameter: 1-3/8 in
• Overall Length: 6.563 in
• Overall Height: 3.689 in
• Overall Width: 2-1/64 in
• Base Width: 1.843 in
• Bolt Center-to-Center Length: 5.126 in
• Base to Bore Centerline: 1.813 in
• Maximum Speed: 3930 rpm
• Load Capacity: 5770 lb Dynamic / 3440 lb Static
• Expansion Type: Non-Expansion (Fixed)
• Seal Type: Shroud
• Material: Cast Iron
• Finish: Uncoated
• Application: Agriculture, Food Processing, Fans, Blowers, and Conveyors
