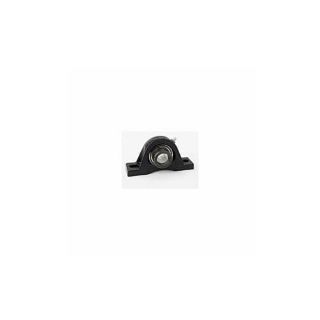

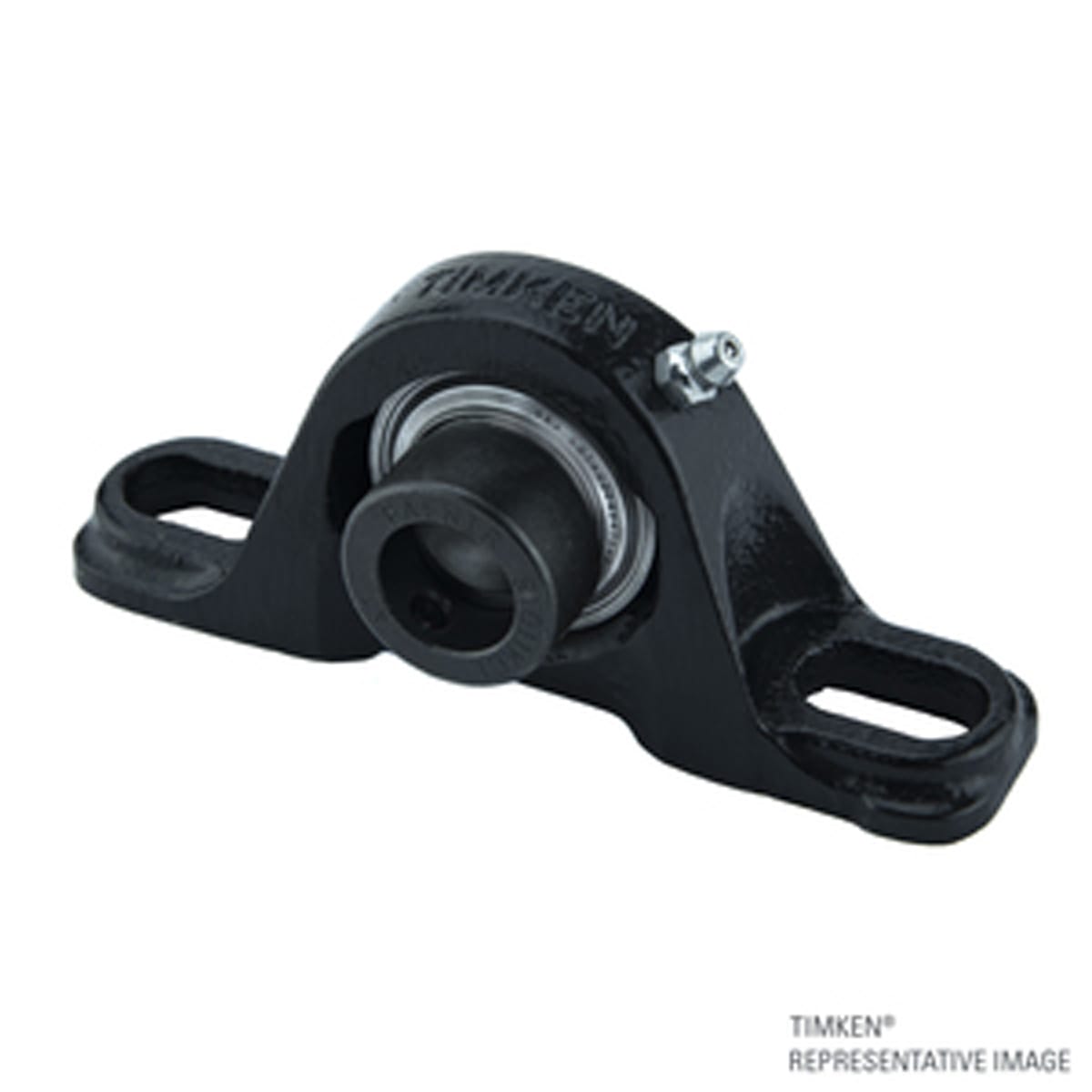

Timken RAK13/16 Pillow Block Ball Bearing Unit Normal Duty 1-3/16 in Bore

Product Description

The Timken RAK13/16 Pillow Block Ball Bearing Unit serves as a reliable solution for shaft support. This unit features a 1-3/16 inch diameter bore, designed for mounting on straight shafts with a slip fit. It ensures smooth operation in various industrial applications.

• Normal duty design for general use.
• Equipped with a two-bolt base for secure mounting.
• Features a round bore and an eccentric locking device for easy installation.

Product Highlights

Timken ball bearing housed units are built for high performance and stability.

Product Information

Standard Information

• Brand: Timken
• MPN: RAK13/16

Technical Specifications

• Bore Diameter: 1-3/16 inches
• Base to Bore Centerline: 1.444 inches
• Bolt Center-to-Center Length: 4.626 inches
• Overall Length: 6.189 inches
• Overall Height: 3.217 inches
• Overall Width: 1-29/32 inches
• Base Width: 1.689 inches
• Dynamic Load Capacity: 4370 lb
• Static Load Capacity: 2530 lb
• Maximum Speed: 4570 rpm
• Temperature Rating: 250 degrees Fahrenheit
• Material: Cast Iron
• Seal Type: Shroud
• Expansion Type: Non-Expansion (Fixed)
