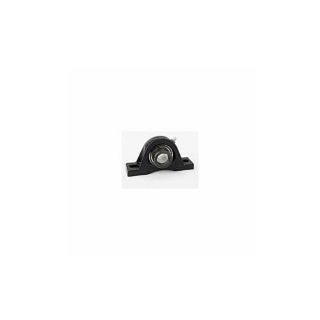

Timken RAK1 RAK Normal Duty Pillow Block Ball Bearing Unit 1 in Bore 4.126 in Bolt Center-to-Center

Product Description

The Timken RAK1 is a normal duty pillow block ball bearing unit. It has a bore diameter of one inch and a bolt center-to-center length of four point one two six inches. This unit is designed for easy mounting on straight shafts, offering reliable support for various applications.

• Heavier design with solid, flat feet for additional strength.
• Compact one-piece housing suitable for any mounting position.
• Pre-lubricated for immediate installation with a grease fitting for relubrication.

Product Highlights

Designed for industrial use, the RAK1 is suitable for applications in agriculture, food processing, fans, blowers, and conveyors. Its robust design ensures longevity and performance under various conditions.

Product Information

Standard Information

• Brand: Timken
• Type: Normal Duty

Technical Specifications

• Series: RAK
• Bore Diameter: 1 in
• Bolt Center-to-Center Length: 4.126 in
• Base to Bore Centerline: 1.313 in
• Overall Length: 5.5 in
• Overall Width: 1.75 in
• Overall Height: 2.748 in
• Load Capacity: 3150 lb Dynamic / 1760 lb Static
• Maximum Speed: 5440 rpm
• Temperature Rating: 250 deg F
• Mounting Type: Two-Bolt Base
• Material: Cast Iron
• Seal Type: Shroud
• Locking Device: Eccentric
• Expansion Type: Non-Expansion (Fixed)
