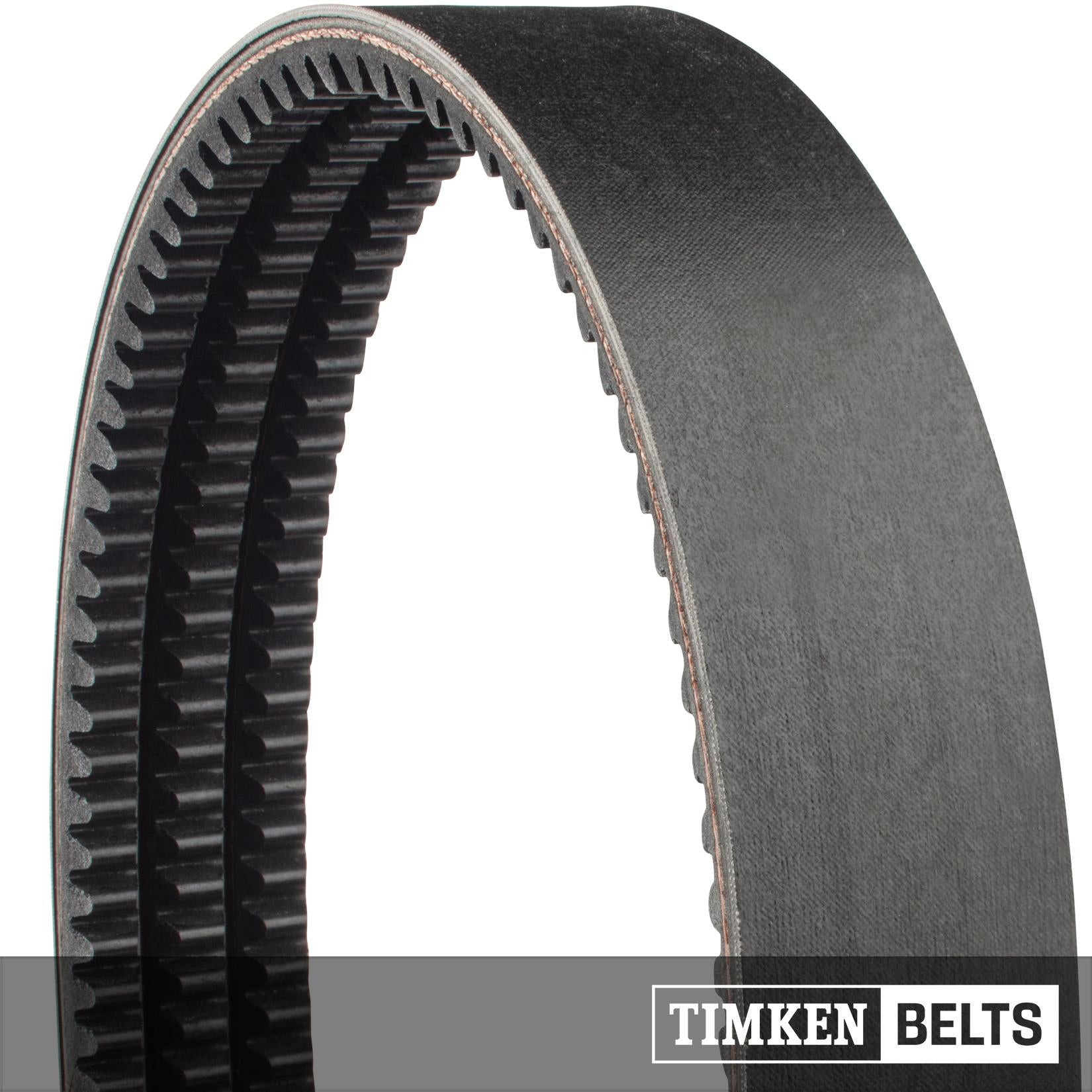

Timken R3VX600-4 Power-Wedge Cog-Band Banded V-Belt - 3VX Section, 4 Band, 60.00 in Outside Length

Product Description

The Timken R3VX600-4 is a Power-Wedge Cog-Band Banded V-Belt designed for high performance in mechanical power transmission applications. This belt features a unique banded construction that allows multiple belts to function as a single unit. This design promotes even load distribution and reduces wear.

• Made in the USA
• Excellent oil and heat resistance
• Static dissipating and vibration dampening features

Product Highlights

The Power-Wedge design enables efficient operation on smaller pulleys, saving space and costs.

Product Information

Standard Information

• Brand: Timken
• Part Number: R3VX600-4

Technical Specifications

• Weight: 2.54 lbs
• Section: 3VX
• Material: Neoprene
• Thickness: 0.3750 in
• Top Width: 1-1/2 in
• Outside Length: 60.00 in
• Number of Strands: 4
• Operating Temperature Range: -35 to 130 °F
• Resistance Features: Oil & Heat Resistant, Static Dissipating
• Standards Met: ARPM
