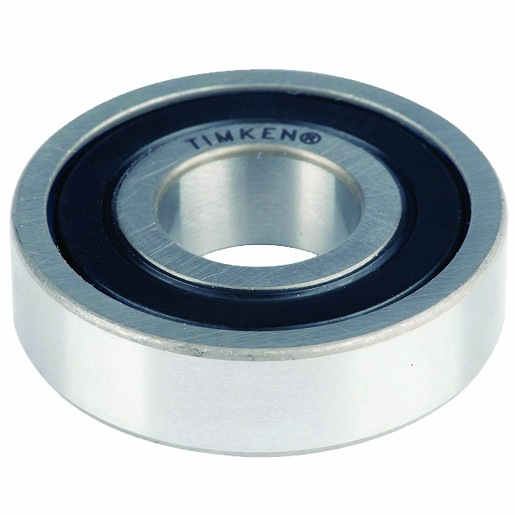

Timken R12H-2RS/F Radial/Deep Groove Ball Bearing - Straight Bore, 0.7500 in ID, 1.6250 in OD, 0.4375 in Width

Product Description

Timken R12H-2RS/F is a radial and deep groove ball bearing designed for various applications. With a straight bore and dimensions of zero point seven five inches inner diameter and one point six two five inches outer diameter, this bearing also features a width of zero point four three seven five inches. It is double sealed to enhance lubricant retention and offer protection against contaminants.

• Double contact seal for superior lubrication retention
• Compatible with ISO standard dimensions
• Minimal size to performance ratio for compact spaces

Product Highlights

This Timken ball bearing promotes quiet operation and is suitable for electric motor quality applications.

Product Information

Standard Information

• Manufacturer: Timken
• Minimum Order Quantity: 1

Technical Specifications

• Series: R-Inch
• Weight: 0.131 lbs
• Bore Diameter: 0.7500 in
• Overall Width: 0.4375 in
• Outside Diameter: 1.6250 in
• Seal Type: Double Sealed
• Row Type: Single
• Precision Class: ISO Normal/ABEC1
