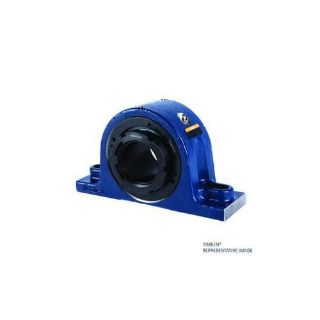

Timken QVVPL14V207SB QVVPL Pillow Block 2.4375 in Bore 6.81 to 7.44 in Bolt Center-to-Center

Product Description

The Timken QVVPL14V207SB is a robust pillow block designed for heavy-duty applications. With a bore diameter of two point four three seven five inches, this unit supports a bolt center-to-center length ranging from six point eight one to seven point four four inches. Its structure is a blend of durability and efficiency, ideal for environments with high-speed operations.

• Engineered for harsh conditions.
• Interchangeable with a wide range of products.
• Double V-Lock locking device enhances stability.

Product Highlights

This pillow block features a tapered bore and is constructed from steel, painted for added protection against the elements.

Product Information

Standard Information

• Brand: Timken
• Part Number: QVVPL14V207SB QM

Technical Specifications

• Bore Diameter: 2.4375 inches
• Bolt Center-to-Center Length: 6.81 to 7.44 inches
• Base to Bore Centerline: 2.75 inches
• Overall Length: 9.25 inches
• Overall Width: 3.5 inches
• Overall Height: 5.8 inches
• Base Width: 2.9 inches
• Maximum Speed: 1400 rpm Grease / 1400 rpm Oil
• Dynamic Load Capacity: 213000 N
• Static Load Capacity: 231000 N
• Temperature Rating: -50 to 200 degrees F
• Mounting Type: 2-Bolt
• Locking Device: Double V-Lock
• Seal Type: B Seal
• Expansion Type: Fixed
