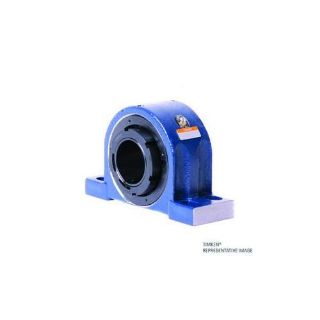

Timken QVVPG20V090ST QM Pillow Block 3.5433 in Bore 10.88 to 13.38 in Bolt Center-to-Center

Product Description

The Timken QVVPG20V090ST is designed for challenging environments. This pillow block features a bore diameter of three point five four three three inches and a variable bolt center-to-center length of ten point eight eight to thirteen point three eight inches. The strong construction ensures durability and efficiency in various applications.

• Dynamic load capacity of ninety-seven thousand seven hundred pounds.
• Built to operate in temperatures ranging from minus one hundred to five hundred degrees Fahrenheit.
• Non-expansion (fixed) design with a double V-Lock locking device.

Product Highlights

This product is suitable for high-speed applications and provides a reliable mechanical withdrawal and quick installation feature.

Product Information

Standard Information

• Brand: Timken
• Manufacturer: Timken

Technical Specifications

• Series: QVVPG
• Bore Diameter: 3.5433 inches
• Bolt Center-to-Center Length: 10.88 to 13.38 inches
• Base to Bore Centerline: 4.409 inches
• Overall Length: 15 inches
• Overall Width: 4.63 inches
• Overall Height: 8.45 inches
• Mounting Type: 4-Bolt
• Locking Device: Double V-Lock
• Expansion Type: Non-Expansion (Fixed)
• Material: Steel
• Finish: Painted
• Load Capacity: 97700 lb Dynamic / 113000 lb Static
• Maximum Speed: 1600 rpm Grease / 2000 rpm Oil
• Temperature Rating: -100 to 500 degrees Fahrenheit
