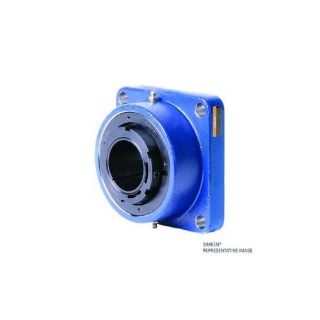

Timken QVVF22V315SEM QM Square Flange Block 3.9375 in Bore Replacement MPN

Product Description

The Timken QVVF22V315SEM is a square flange block designed for heavy-duty applications. This unit features a bore diameter of three point nine three seven five inches and a bolt center-to-center length of seven point seven inches. Its robust design includes a painted finish, making it ideal for harsh conditions.

• Four-bolt square flange mounting for secure installation
• Features nitrile rubber seals for superior contamination protection
• Double V-Lock locking device ensures reliability

Product Highlights

This square flange block offers an effective sealing solution in moist and dirty applications.

Product Information

Standard Information

• Brand: Timken
• Manufacturer: Timken

Technical Specifications

• Bore Diameter: 3.9375 in
• Overall Depth: 4.99 in
• Overall Height: 9.9 in
• Overall Length/Diameter: 9.9 in
• Bolt Center-to-Center Length: 7.7 in
• Bolt Circle Diameter: 10.9 in
• Load Capacity: 555000 N Dynamic/653000 N Static
• Maximum Speed: 900 rpm Grease/900 rpm Oil
• Seal Material: Nitrile Rubber
• Locking Device: Double V-Lock
• Temperature Rating: -50 to 200 deg F
