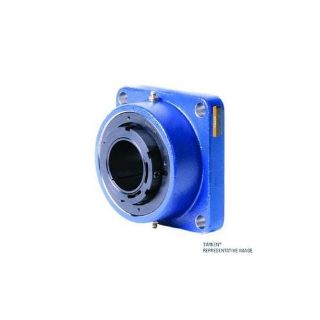

Timken QVVF11V115SM QM Square Flange Block 1.9375 in Bore 4-Bolt Square Flange

Product Description

The Timken QVVF11V115SM Square Flange Block is designed for tough conditions. This product features a bore diameter of one point nine three seven five inches and a bolt center-to-center length of four point three inches, making it a versatile component for various machinery applications.

• High load capacity of 140000 N dynamic and 142000 N static
• Suitable for high-speed operations with a maximum speed of 2200 rpm
• Temperature range of -50 to 200 degrees Fahrenheit

Product Highlights

This square flange block offers reliable sealing and efficient operation in moist and dirty environments.

Product Information

Standard Information

• Brand: Timken
• Part Number: QVVF11V115SM QM

Technical Specifications

• Bore Diameter: 1.9375 in
• Overall Length/Diameter: 5.5 in
• Overall Depth: 4.02 in
• Overall Height: 5.5 in
• Bolt Circle Diameter: 6.18 in
• Bolt Center-to-Center Length: 4.3 in
• Load Capacity: 140000 N Dynamic/142000 N Static
• Maximum Speed: 2200 rpm Grease/2200 rpm Oil
• Seal Material: Nitrile Rubber
• Locking Device: Double V-Lock
• Finish: Painted
• Temperature Rating: -50 to 200 deg F
