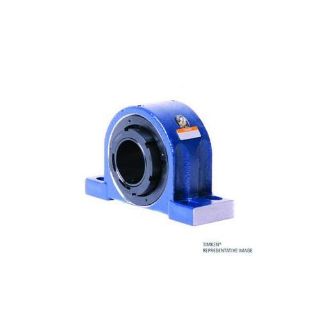

Timken QVPH17V212SO Pillow Block 2.75 in Bore 9.44 to 11.31 in Bolt Center-to-Center Length

Product Description

The Timken QVPH17V212SO Pillow Block is designed for challenging environments. This unit features a two-point sealing solution to keep out contaminants, ensuring a reliable operation. It is ideal for high-speed applications where shaft centering is critical, making it suitable for various industrial uses.

• Compatible with a wide range of applications!
• Engineered for efficient operations and uptime!
• Built from high-strength steel for durability!

Product Highlights

The QVPH17V212SO includes features such as multiple steel-housing options, allowing it to adapt to different setups easily.

Product Information

Standard Information

• Brand: Timken
• Part Number: QVPH17V212SO QM

Technical Specifications

• Finish: Painted
• Material: Steel
• Bore Diameter: 2.75 in
• Bore Type: Tapered
• Seal Type: O Seal
• Base Width: 3.63 in
• Load Capacity: 297000 N Dynamic / 320000 N Static
• Maximum Speed: 1100 rpm Grease / 1100 rpm Oil
• Mounting Type: 4-Bolt
• Overall Width: 3.91 in
• Overall Height: 7.2 in
• Overall Length: 12.63 in
• Base to Bore Centerline: 3.75 in
• Bolt Center-to-Center Length: 9.44 to 11.31 in
• Temperature Rating: -40 to 176 deg F
• Expansion Type: Fixed
• Locking Device: Single V-Lock
