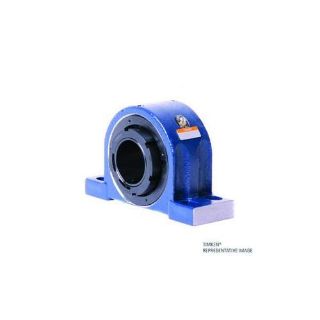

Timken QVPH17V212SEO Pillow Block 2.75 in Bore 9.44 to 11.31 in Bolt Center-to-Center Length

Product Description

The Timken QVPH17V212SEO Pillow Block is designed for heavy-duty applications. This unit features a two point seventy-five inch bore with a bolt center-to-center length varying from nine point forty-four to eleven point thirty-one inches. It includes multiple locking options and effective sealing solutions, ensuring durability and efficiency in operation.

• Compatible with a range of products
• Engineered for high-speed applications
• Designed to keep contaminants out

Product Highlights

The QVPH17V212SEO Pillow Block is optimal for use in environments where reliability and performance are essential.

Product Information

Standard Information

• Brand: Timken
• MPN: QVPH17V212SEO

Technical Specifications

• Bore Diameter: 2.75 in
• Bolt Center-to-Center Length: 9.44 to 11.31 in
• Base to Bore Centerline: 3.75 in
• Overall Length: 12.63 in
• Overall Width: 3.91 in
• Overall Height: 7.2 in
• Base Width: 3.63 in
• Locking Device: Single V-Lock
• Seal Type: O Seal
• Material: Steel
• Finish: Painted
• Load Capacity: 297000 N Dynamic / 320000 N Static
• Temperature Rating: -40 to 176 deg F
• Maximum Speed: 1100 rpm Grease / 1100 rpm Oil
• Mounting Type: 4-Bolt
• Expansion Type: Expansion
