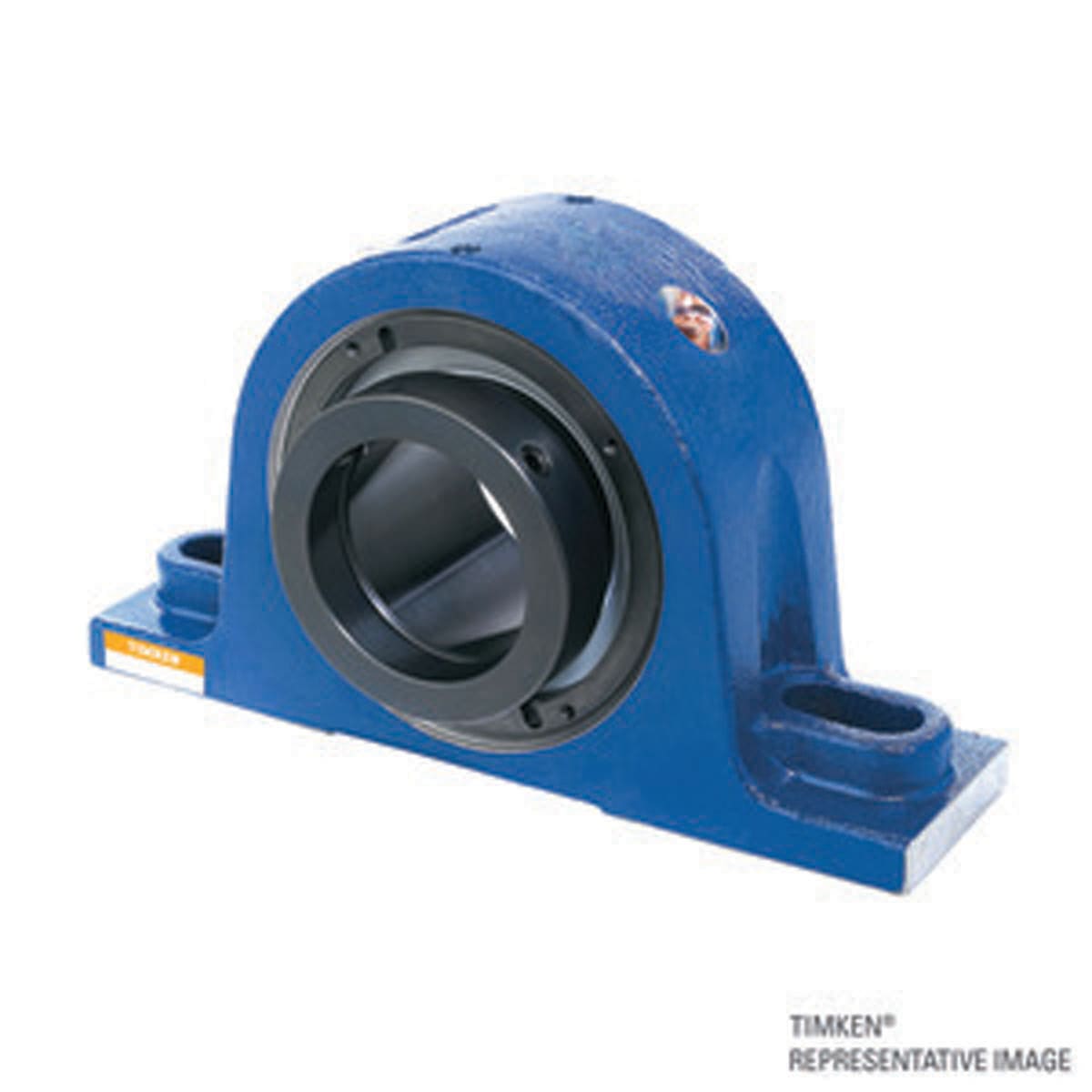

Timken QMPL15J215ST Pillow Block Spherical Roller Bearing Unit 2-15/16 in Bore 7.7 to 8.4 in Bolt Center-to-Center

Product Description

The Timken QMPL15J215ST is a pillow block spherical roller bearing unit designed to handle high radial loads in demanding environments. This unit features a bore diameter of two and fifteen-sixteenth inches and a bolt center-to-center length that ranges from seven point seven to eight point four inches. The product’s construction includes a cast steel housing that provides durability and the powder-coated finish enhances protection against contaminants.

• High load capacity with 49900 lb dynamic and 54100 lb static ratings.
• Maximum speed of 2400 rpm for grease lubrication and 2900 rpm for oil lubrication.
• Includes an eccentric locking design that ensures a secure fit.

Product Highlights

Timken's spherical roller bearings are optimal for heavy-duty applications such as metal mills, cement, mining, and water treatment.

Product Information

Standard Information

• Brand: Timken
• Type: Pillow Block

Technical Specifications

• MPN: QMPL15J215ST
• Bore Diameter: 2-15/16 in
• Maximum Load Capacity: 49900 lb Dynamic / 54100 lb Static
• Overall Length: 10.44 in
• Overall Height: 6.59 in
• Overall Width: 3.87 in
• Base Width: 3 in
• Mounting Type: Two-Bolt Base
• Locking Device: Eccentric
• Seal Type: Labyrinth T
• Finish: Powder Coated
