Timken QMPF26J130ST QMPF Pillow Block 5.1181 in Bore 13.75 to 15.88 in Bolt Center-to-Center

Product Description

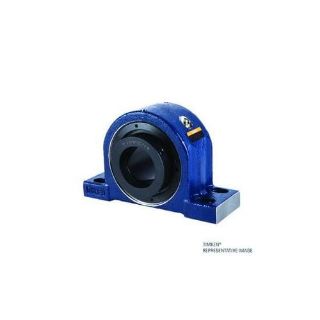

The Timken QMPF26J130ST is a pillow block bearing designed to perform in challenging environments. It features a bore diameter of five point one one eight one inches and a bolt center-to-center length adjustable between thirteen point seven five and fifteen point eight eight inches. This unit is suitable for a range of applications requiring durability and reliability.

• Robust construction with multiple steel-housing options
• Cylindrical bore for easy installation
• Labyrinth seal that prevents contaminants from entering the bearing

Product Highlights

Engineered for operations in higher-speed applications, particularly in dirty or moisture-affected areas. The Timken QMPF26J130ST ensures a secure fit and is capable of withstanding temperatures from negative one hundred to five hundred degrees Fahrenheit.

Product Information

Standard Information

• Brand: Timken
• Part Number: QMPF26J130ST

Technical Specifications

• Bore Diameter: 5.1181 in
• Bolt Center-to-Center Length: 13.75 to 15.88 in
• Base Width: 5.04 in
• Overall Width: 6.25 in
• Overall Length: 17.5 in
• Overall Height: 11.01 in
• Temperature Rating: -100 to 500 deg F
• Load Capacity: 757000 N Dynamic / 945000 N Static
• Maximum Speed: 1000 rpm Grease / 1500 rpm Oil
• Mounting Type: 4-Bolt
• Locking Device: Eccentric
• Seal Type: T Seal
• Expansion Type: Fixed
