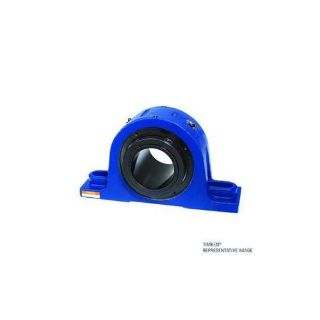

Timken QAP13A207SC QM Pillow Block 2.4375 in Bore 6.88 to 8.63 in Bolt Center-to-Center

Product Description

The Timken QAP13A207SC QM Pillow Block is designed for demanding tasks. It features a bore diameter of two point four three seven five inches and supports bolt center-to-center lengths from six point eight eight to eight point six three inches. The stable construction helps in keeping contaminants at bay, ensuring smooth operations. This pillow block is suitable for various applications due to its robust design and effective sealing.

• Steel construction with a painted finish
• Temperature rating from minus thirty to four hundred degrees Fahrenheit
• Features a single concentric collar locking device

Product Highlights

This pillow block provides reliable performance and is easy to install. It is compatible with multiple equipment types, making it a versatile choice for maintenance and repair tasks.

Product Information

Standard Information

• Brand: Timken
• Part Number: QAP13A207SC QM

Technical Specifications

• Bore Diameter: 2.4375 inches
• Bolt Center-to-Center Length: 6.88 to 8.63 inches
• Base to Bore Centerline: 2.75 inches
• Overall Length: 10.25 inches
• Overall Width: 3.6 inches
• Overall Height: 5.8 inches
• Load Capacity: 206000 N Dynamic / 216000 N Static
• Maximum Speed: 1500 rpm Grease / 1500 rpm Oil
