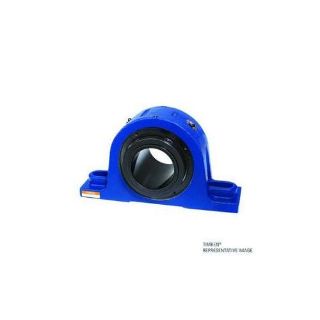

Timken QAAPL13A208SN Pillow Block 2.5 in Bore 6.81 to 7.44 in Bolt Center-to-Center

Product Description

The Timken QAAPL13A208SN Pillow Block is designed for demanding environments. This unit features a durable steel housing and locking options that ensure reliable performance. The product is equipped with advanced sealing solutions to keep contaminants out, supporting efficient operations.

• Suitable for harsh conditions with strong sealing features
• Interchangeable with a wide range of other products
• Supports up to 206000 N Dynamic load and 216000 N Static load

Product Highlights

This pillow block offers a robust construction with multiple mounting options to enhance your application’s reliability.

Product Information

Standard Information

• Brand: Timken
• MPN: QAAPL13A208SN

Technical Specifications

• Bore Diameter: 2.5 in
• Bolt Center-to-Center Length: 6.81 to 7.44 in
• Base to Bore Centerline: 2.75 in
• Overall Length: 9.25 in
• Overall Width: 3.6 in
• Overall Height: 5.8 in
• Mounting Type: 2-Bolt
• Locking Device: Double Concentric Collar
• Seal Type: N Seal
• Material: Steel
• Finish: Painted
• Temperature Rating: -30 to 400 deg F
• Maximum Speed: 1800 rpm Grease/1800 rpm Oil
• Load Capacity: 206000 N Dynamic/216000 N Static
• Expansion Type: Fixed
