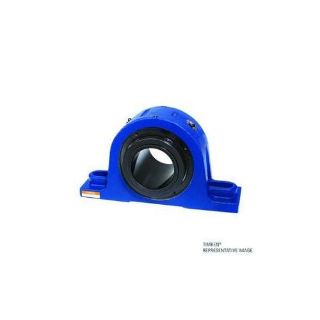

Timken QAAP20A315SEM Pillow Block 3.9375 in Bore 10.04 to 12.6 in Bolt Center-to-Center Length

Product Description

The Timken QAAP20A315SEM Pillow Block is designed for heavy-duty applications. Its robust construction ensures reliability in harsh conditions. This unit includes multiple locking options and sealing solutions to keep contaminants out, promoting efficient operations.

• Interchangeable with a range of products.
• Double concentric collar locking device for enhanced stability.
• Temperature range from -50 to 200 degrees Fahrenheit.

Product Highlights

Engineered for durability, this pillow block offers superior sealing, making it suitable for moist and dirty environments.

Product Information

Standard Information

• Brand: Timken
• Manufacturer: Timken

Technical Specifications

• MPN: QAAP20A315SEM
• Series: QAAP
• Bore Diameter: 3.9375 inches
• Bolt Center-to-Center Length: 10.04 to 12.6 inches
• Base to Bore Centerline: 4.13 inches
• Overall Length: 14.25 inches
• Overall Width: 4.84 inches
• Overall Height: 8.26 inches
• Base Width: 3.73 inches
• Mounting Type: 2-Bolt
• Locking Device: Double Concave Collar
• Seal Type: M Seal
• Material: Steel
• Finish: Painted
• Load Capacity: 435000 N Dynamic / 502000 N Static
• Maximum Speed: 1200 rpm Grease / 1200 rpm Oil
• Expansion Type: Expansion
• Temperature Rating: -50 to 200 degrees Fahrenheit
