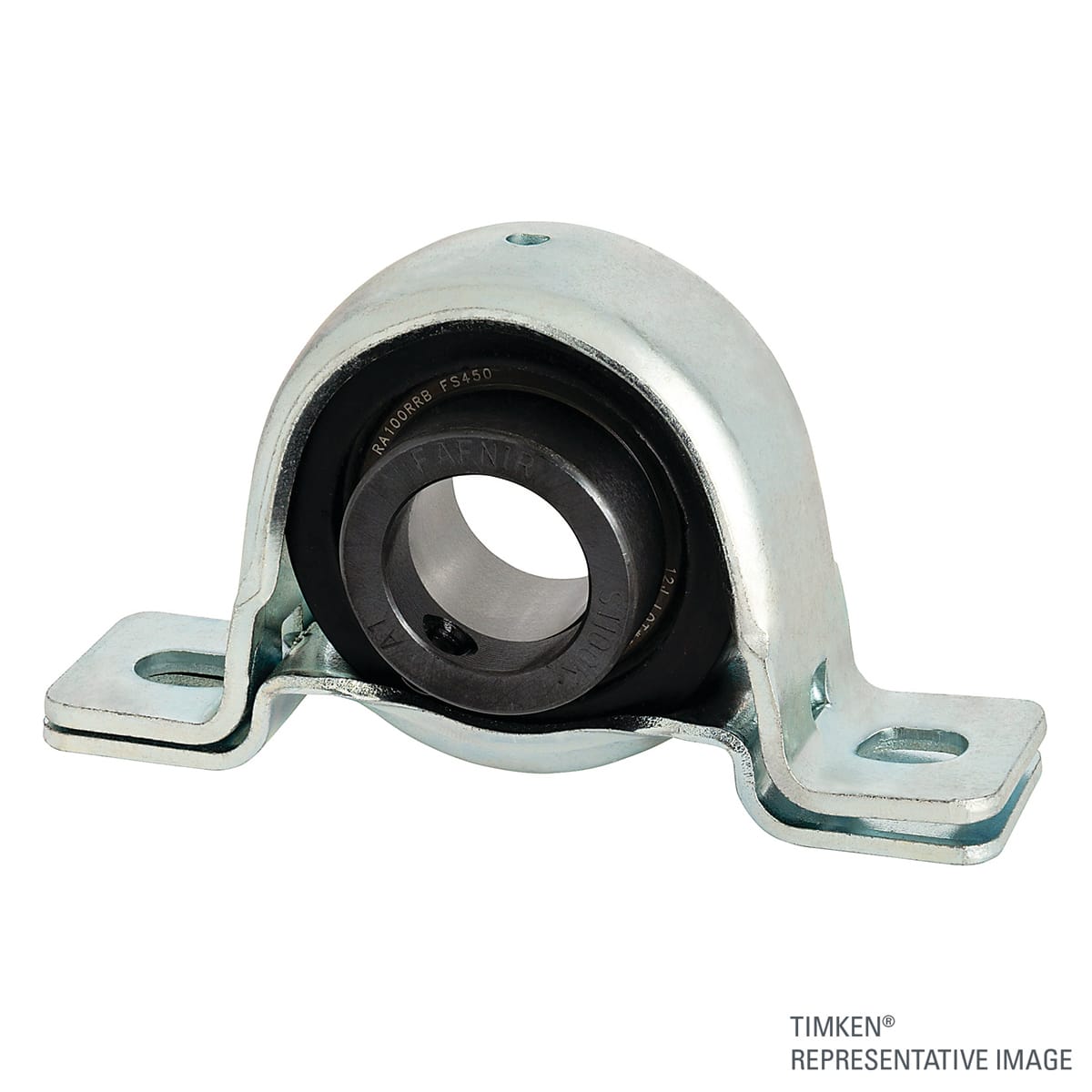

Timken PB3/4 Ball Pillow Block Housed Unit | 0.75 in Bore 1.85 in OD

Product Description

The Timken PB3/4 is a ball pillow block housed unit designed for effective performance. This unit includes the bearing, housing, seal, and locking system integrated into one assembly, simplifying installation and operation. It is suitable for light-duty applications, providing a reliable solution for various mechanical setups.

• Includes integrated bearing, housing, seal, and locking system
• Self-aligning spherical bearing seat
• Constructed for easy installation in light-duty applications

Product Highlights

Timken presents a robust solution with the PB3/4, designed for various applications that require reliable bearing support while enhancing operational efficiency.

Product Information

Standard Information

• Brand: Timken
• MPN: PB3/4

Technical Specifications

• Bore Diameter: 0.7505 Inch | 19.0627 mm
• Outside Diameter: 1.8504 Inch | 47.00016 mm
• Overall Width: 0.84 Inch | 21.336 mm
• Overall Height: 2.06 Inch | 52.324 mm
• Overall Length: 4.12 Inch | 104.648 mm
• Static Load Capacity: 1480 lb
• Dynamic Load Capacity: 2880 lb
• Material: Steel
• Rolling Element Material: Steel
• Precision Class: ISO Normal/ABEC1
• Radial Internal Clearance: P(C3)
• Cage Type: One Piece Molded Nylon
• Retainer Type: One Piece Molded Nylon
• Retainer Material: Nylon
• Item Name: Fafnir Ball Housed Unit
