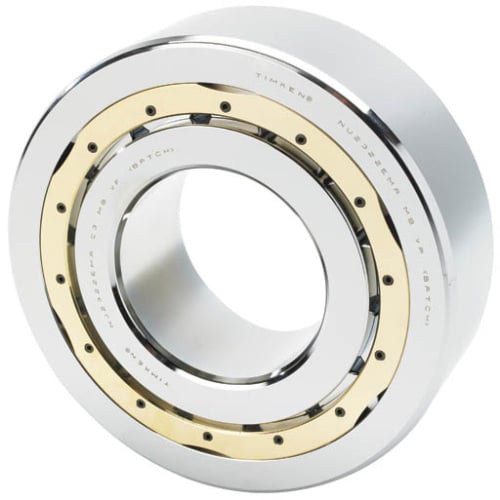

Timken NU236EMAC3 Cylindrical Roller Bearing - Straight - 180 mm ID - 320 mm OD - 52 mm Width - C3

Product Description

The Timken NU236EMAC3 is a cylindrical roller bearing designed for heavy load applications. It features a straight bore type with a bore diameter of one hundred eighty millimeters and an outside diameter of three hundred twenty millimeters. This bearing is suitable for use in various industrial applications where durability and performance are required.

• Single row cylindrical roller design
• Maximum operating speed of two thousand RPM
• C3 internal clearance for improved performance

Product Highlights

This bearing is ideal for high-speed operations and can withstand heavy radial loads.

Product Information

Standard Information

• Brand: Timken
• MPN: NU236EMAC3

Technical Specifications

• Bore Diameter: 180 mm
• Outside Diameter: 320 mm
• Overall Width: 52 mm
• Number Of Rows: 1
• Internal Clearance: C3
• Cage Material: Brass
• Fillet Radius: 4 mm
• Maximum RPM: 2000 RPM
• Operating Temperature Range: Maximum of +302 °F
• Finish/Coating: Uncoated
• Bearing Material: Chrome Steel
• Closure Type: Open
• Ring Separation: Separable Inner Ring
