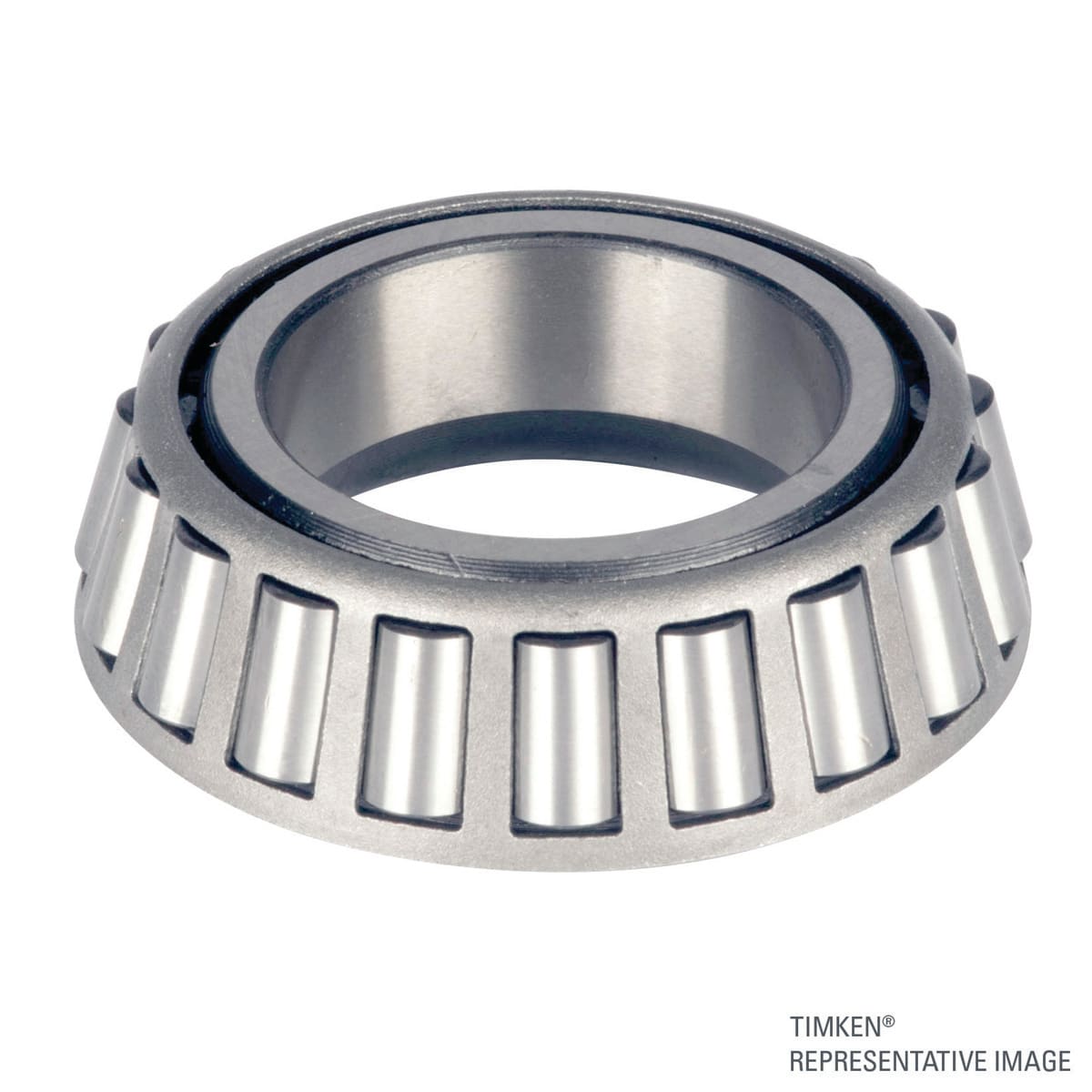

Timken M86648-2 Tapered Roller Bearing Cone | 1.219 in Bore | 0.844 in Width

Product Description

Timken M86648-2 is a tapered roller bearing cone designed for durability and performance in demanding applications. This product features a bore diameter of one point two hundred nineteen inches and a cone width of zero point eight four four inches.

• Single cone design with one-piece pressed steel cage.
• High load capacity: 13500 lb dynamic and 16100 lb static.
• Temperature rating between 176 to 203 degrees Fahrenheit.

Product Highlights

Timken's tapered roller bearings are engineered to handle both radial and axial loads effectively while optimizing size and weight.

Product Information

Standard Information

• Brand: Timken
• MPN: M86648-2

Technical Specifications

• Bore Diameter: 1.219 inches
• Cone Width: 0.844 inches
• Maximum Shaft Fillet Radius: 0.09 inches
• Dynamic Load Capacity: 13500 lb
• Static Load Capacity: 16100 lb
• Cage Material: Steel
• Temperature Rating: 176 to 203 degrees Fahrenheit
• Type: Type TS
