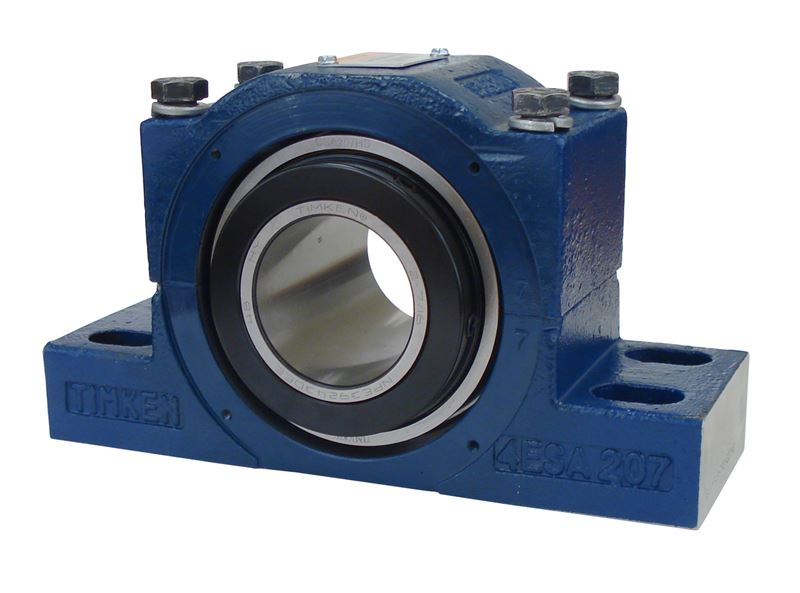

Timken ESA-P4B-TRB-3 15/16 Pillow Block Roller Bearing Unit

Product Description

The Timken ESA-P4B-TRB-315/16 is a pillow block roller bearing unit with a bore diameter of three and fifteen-sixteenths inches. It is constructed from cast iron and designed as a fixed non-expansion bearing. This type of bearing is particularly useful for applications involving alignment issues.

• Angular self-aligning design with axial float
• Durable cast iron housing
• Maintains functionality under high radial loads

Product Highlights

This pillow block roller bearing unit is suitable for various industrial applications. The design allows for easy installation and effective load distribution.

Product Information

Standard Information

• Brand: Timken
• MPN: ESA-P4B-TRB-315/16

Technical Specifications

• Weight: 105.7 lbs
• Bore Type: Cylindrical
• Bore Diameter: 3-15/16 in
• Mounting Type: 4-Bolt Base
• Expansion Type: Non-Expansion Bearing (Fixed)
• Locking Device: Set Screw
• Housing Material: Cast Iron
• Inner Race Width: 6.25 inches
• Radial Static Load Capacity: 154000 lbf
